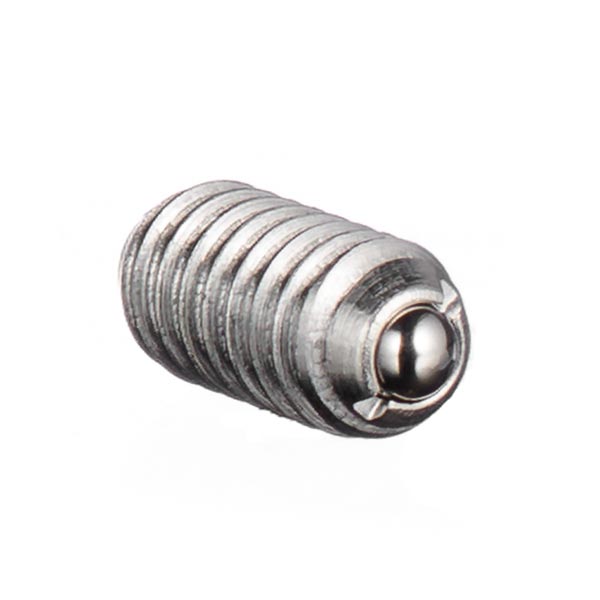

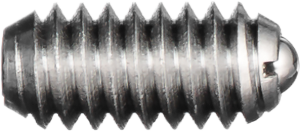

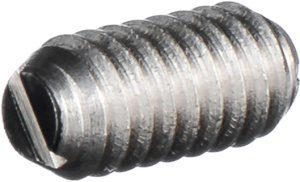

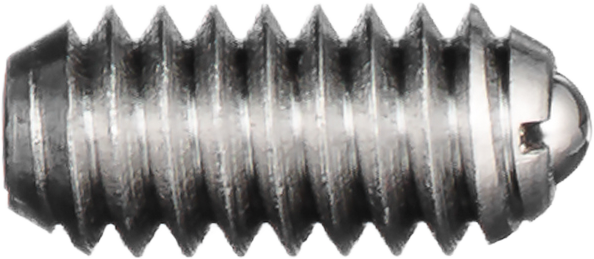

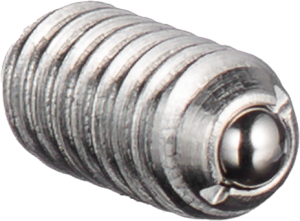

View All Ball Plungers – Stainless Steel
Ball Plungers – Stainless Steel are compact spring loaded devices for positioning, locating, indexing, torque limiting, gear shifters and detents where high side loads are present. Stainless steel construction provides maximum protection against rust and corrosion and withstands high temperatures. Available with controlled end forces and screwdriver installation in ANSI thread sizes 4–48 through 5/8–11 and metric M3 x 0.5 through M16 x 2.0, with or without thread lock.
Specify by:
- Thread standard and size (ANSI or Metric)
- End force requirement (initial and final)
- Thread lock requirement (with or without)

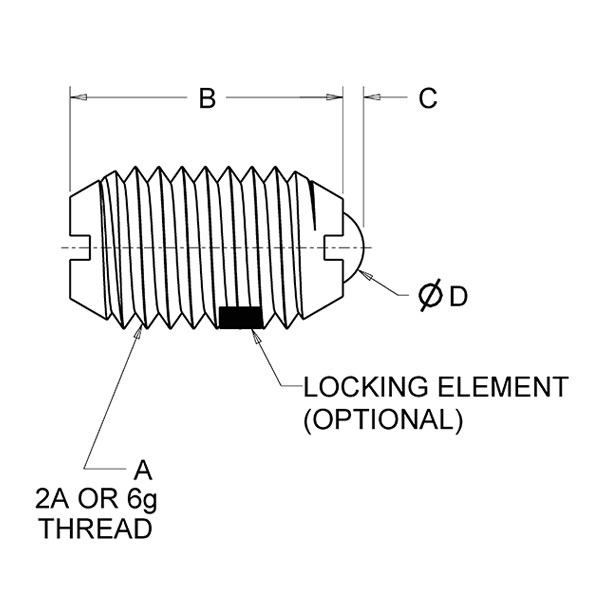

- Envelope dimensions (A–D per table)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | End Force, (Lbs.) | A | B | C | D | ROHS | CAD | CAD With Thread Lock |
||
| With Thread Lock | Initial | Final | ||||||||
| SSB46 | SSB46P | 1/8 | 1/2 | 4-48 | 0.190 | 0.020 | 0.062 | SSB46 | SSB46P | |
| SSB47 | SSB47P | 1/4 | 3/4 | 5-40 | 0.250 | 0.020 | 0.062 | SSB47 | SSB47P | |
| SSB48 | SSB48P | 1/2 | 1.0 | 6-40 | 0.310 | 0.023 | 0.078 | SSB48 | SSB48P | |
| SSB50A | SSB50AP | 1/2 | 1-1/4 | 8-32 | 0.340 | 0.025 | 0.094 | SSB50A | SSB50AP | |
| SSB50 | SSB50P | 1/2 | 1-1/4 | 8-36 | 0.340 | 0.025 | 0.094 | SSB50 | SSB50P | |
| SSB52 | SSB52P | 1-1/2 | 3.0 | 10-32 | 0.510 | 0.025 | 0.094 | SSB52 | SSB52P | |
| SSBL52 | SSBL52P | 1/2 | 1-1/2 | 10-32 | 0.510 | 0.025 | 0.094 | SSBL52 | SSBL52P | |
| SSBH52 | SSBH52P | 2.0 | 5.0 | 10-32 | 0.510 | 0.025 | 0.094 | SSBH52 | SSBH52P | |
| SSB54 | SSB54N | 3.0 | 7.0 | 1/4-20 | 0.530 | 0.035 | 0.125 | SSB54 | SSB54N | |
| SSBL54 | SSBL54N | 2.0 | 4.0 | 1/4-20 | 0.530 | 0.035 | 0.125 | SSBL54 | SSBL54N | |
| SSBH54 | SSBH54N | 4.0 | 12.0 | 1/4-20 | 0.530 | 0.035 | 0.125 | SSBH54 | SSBH54N | |
| SSB56 | SSB56N | 4.0 | 9.0 | 5/16-18 | 0.580 | 0.040 | 0.156 | SSB56 | SSB56N | |
| SSBL56 | SSBL56N | 2.0 | 4-1/4 | 5/16-18 | 0.580 | 0.040 | 0.156 | SSBL56 | SSBL56N | |
| SSBH56 | SSBH56N | 6.0 | 17.0 | 5/16-18 | 0.580 | 0.040 | 0.156 | SSBH56 | SSBH56N | |
| SSB58 | SSB58N | 5.0 | 10.0 | 3/8-16 | 0.630 | 0.048 | 0.188 | SSB58 | SSB58N | |
| SSBL58 | SSBL58N | 2-1/5 | 5.0 | 3/8-16 | 0.630 | 0.048 | 0.188 | SSBL58 | SSBL58N | |
| SSBH58 | SSBH58N | 6.0 | 21.0 | 3/8-16 | 0.630 | 0.048 | 0.188 | SSBH58 | SSBH58N | |
| SSB60 | SSB60N | 6.0 | 12.0 | 1/2-13 | 0.750 | 0.072 | 0.281 | SSB60 | SSB60N | |
| SSBL60 | SSBL60N | 3.0 | 6.0 | 1/2-13 | 0.750 | 0.072 | 0.281 | SSBL60 | SSBL60N | |
| SSBH60 | SSBH60N | 6.0 | 30.0 | 1/2-13 | 0.750 | 0.072 | 0.281 | SSBH60 | SSBH60N | |
| SSB62 | SSB62N | 9.0 | 18.0 | 5/8-11 | 0.984 | 0.096 | 0.375 | SSB62 | SSB62N | |
| SSBL62 | SSBL62N | 4-1/2 | 9.0 | 5/8-11 | 0.984 | 0.096 | 0.375 | SSBL62 | SSBL62N | |
| SSBH62 | SSBH62N | 7.0 | 50.0 | 5/8-11 | 0.984 | 0.096 | 0.375 | SSBH62 | SSBH62N | |
