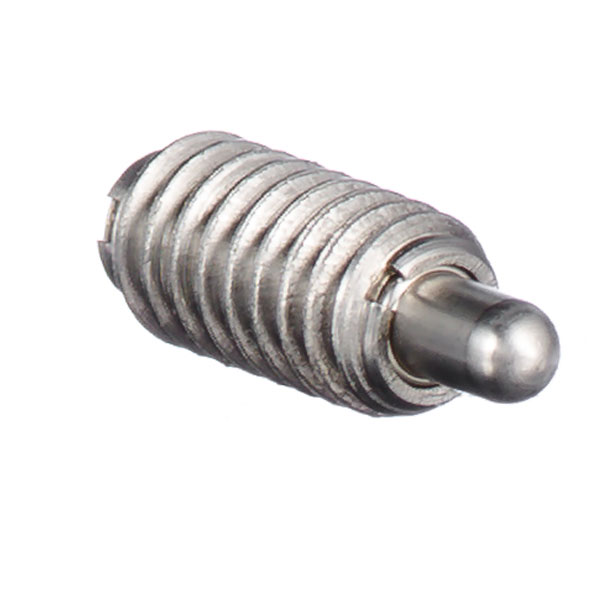

Extended Travel Stubby Plungers – Stainless Steel

Extended Travel Stubby Plungers – Stainless Steel are compact spring plungers that provide the same travel as a standard plunger while using the same body size as a stubby plunger. Use for limited space applications including indexing, electrical contacts, part positioning and detents. Stainless steel construction provides wear and corrosion resistance. Available with a stainless steel nose or Delrin® nose in ANSI thread sizes 8-32 through 5/8-11 and metric M4 x 0.7 through M16 x 2.0 with thread lock options and end forces listed as initial and final values in the tables.

Specify by:

Thread standard and size (ANSI or metric)
Nose style (stainless steel or Delrin®)
End force requirement (initial and final)
Thread lock requirement

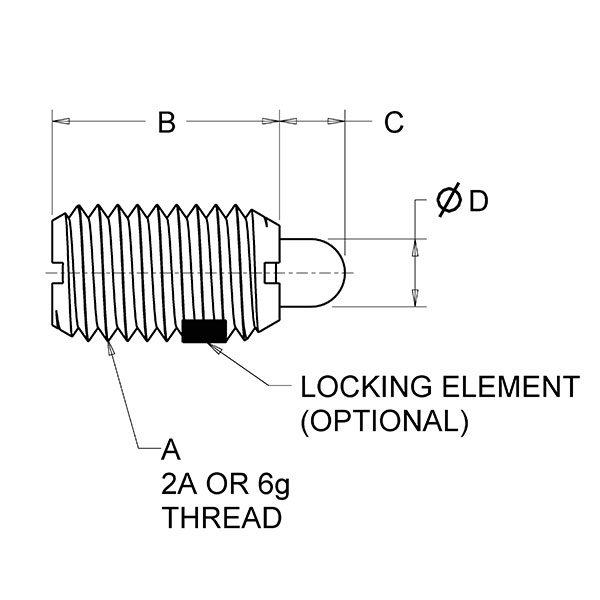

Mounting and stroke dimensions (A–D per table)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Metric Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SML50	SML50P	1.0	3.25	8-32	0.437	0.094	0.070		SML50	SML50P
SML51	SML51P	0.5	2.0	8-32	0.437	0.094	0.070		SML51	SML51P
SML52	SML52P	1.25	4.25	10-32	0.468	0.125	0.093		SML52	SML52P
SML53	SML53P	0.3	3.0	10-32	0.468	0.125	0.093		SML53	SML53P
SML54	SML54N	2.0	7.0	1/4-20	0.531	0.188	0.119		SML54	SML54N
SML55	SML55N	0.3	3.5	1/4-20	0.531	0.188	0.119		SML55	SML55N
SML56	SML56N	2.0	9.0	5/16-18	0.562	0.188	0.135		SML56	SML56N
SML57	SML57N	0.5	4.5	5/16-18	0.562	0.188	0.135		SML57	SML57N
SML58	SML58N	3.0	12.5	3/8-16	0.625	0.188	0.186		SML58	SML58N
SML59	SML59N	1.5	7.5	3/8-16	0.625	0.188	0.186		SML59	SML59N
SML60	SML60N	3.5	19.0	1/2-13	0.750	0.250	0.248		SML60	SML60N
SML61	SML61N	1.7	8.5	1/2-13	0.750	0.250	0.248		SML61	SML61N
SML62	SML62N	4.5	33.5	5/8-11	1.062	0.313	0.310		SML62	SML62N
SML63	SML63N	2.0	10.5	5/8-11	1.062	0.313	0.310		SML63	SML63N

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Extended Travel Stubby Plungers – Stainless Steel

Extended travel stubby plungers offer maximum travel. These compact spring plungers provide the same travel as our standard plunger while using the same body size as our stubby plunger.

Special Features

Case hardened plunger
Wear & corrosion resistance
Compact size
Allows some side loading
Intermediate travel
Screwdriver installation

(1/1)

Start a Quote

Find a Distributor

Print Page

Typical Uses

Limited space
Indexing
Electrical contacts
Part positioning
Detents

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SMDL50	SMDL50P	1.00	3.25	8-32	0.437	0.094	0.070		SMDL50	SMDL50P
SMDL51	SMDL51P	0.50	2.00	8-32	0.437	0.094	0.070		SMDL51	SMDL51P
SMDL52	SMDL52P	1.25	4.25	10-32	0.468	0.125	0.093		SMDL52	SMDL52P
SMDL53	SMDL53P	0.30	3.00	10-32	0.468	0.125	0.093		SMDL53	SMDL53P
SMDL54	SMDL54N	2.00	7.00	1/4-20	0.531	0.188	0.118		SMDL54	SMDL54N
SMDL55	SMDL55N	0.30	3.50	1/4-20	0.531	0.188	0.118		SMDL55	SMDL55N
SMDL56	SMDL56N	2.00	9.00	5/16-18	0.562	0.188	0.135		SMDL56	SMDL56N
SMDL57	SMDL57N	0.50	4.50	5/16-18	0.562	0.188	0.135		SMDL57	SMDL57N
SMDL58	SMDL58N	3.00	12.50	3/8-16	0.625	0.188	0.186		SMDL58	SMDL58N
SMDL59	SMDL59N	1.50	7.50	3/8-16	0.625	0.188	0.186		SMDL59	SMDL59N
SMDL60	SMDL60N	3.50	19.00	1/2-13	0.750	0.250	0.248		SMDL60	SMDL60N
SMDL61	SMDL61N	1.70	8.50	1/2-13	0.750	0.250	0.248		SMDL61	SMDL61N
SMDL62	SMDL62N	4.50	33.50	5/8-11	1.062	0.313	0.310		SMDL62	SMDL62N
SMDL63	SMDL63N	2.00	10.50	5/8-11	1.062	0.313	0.310		SMDL63	SMDL63N

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SMLHM4	SMLHM4P	4.5	14.5	M4 x 0.7	11.1	2.4	1.8		SMLHM4	SMLHM4P
SMLM4	SMLM4P	2.2	8.9	M4 x 0.7	11.1	2.4	1.8		SMLM4	SMLM4P
SMLHM5	SMLHM5P	5.6	18.9	M5 x 0.8	11.9	3.2	2.4		SMLHM5	SMLHM5P
SMLM5	SMLM5P	1.3	13.3	M5 x 0.8	11.9	3.2	2.4		SMLM5	SMLM5P
SMLHM6	SMLHM6P	8.9	31.2	M6 x 1.0	13.5	4.8	3.0		SMLHM6	SMLHM6P
SMLM6	SMLM6P	1.3	15.6	M6 x 1.0	13.5	4.8	3.0		SMLM6	SMLM6P
SMLHM8	SMLHM8P	8.9	40.1	M8 x 1.25	14.3	4.8	3.4		SMLHM8	SMLHM8P
SMLM8	SMLM8P	2.2	20.0	M8 x 1.25	14.3	4.8	3.4		SMLM8	SMLM8P
SMLHM10	SMLHM10P	13.4	55.6	M10 x 1.5	15.9	4.8	4.7		SMLHM10	SMLHM10P
SMLM10	SMLM10P	6.7	33.4	M10 x 1.5	15.9	4.8	4.7		SMLM10	SMLM10P
SMLHM12	SMLHM12P	15.6	84.6	M12 x 1.75	19.1	6.4	6.3		SMLHM12	SMLHM12P
SMLM12	SMLM12P	7.6	37.8	M12 x 1.75	19.1	6.4	6.3		SMLM12	SMLM12P
SMLHM16	SMLHM16P	20.0	149.1	M16 x 2.0	27.0	7.9	7.9		SMLHM16	SMLHM16P
SMLM16	SMLM16P	8.9	46.7	M16 x 2.0	27.0	7.9	7.9		SMLM16	SMLM16P

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SMDLHM4	SMDHM4P	4.5	14.5	M4 x 0.7	11.1	2.4	1.8		SMDLHM4	SMDHM4P
SMDLM4	SMDLM4P	2.2	8.9	M4 x 0.7	11.1	2.4	1.8		SMDLM4	SMDLM4P
SMDLHM5	SMDLHM5P	5.6	18.9	M5 x 0.8	11.9	3.2	2.4		SMDLHM5	SMDLHM5P
SMDLM5	SMDLM5P	1.3	13.3	M5 x 0.8	11.9	1.7	2.4		SMDLM5	SMDLM5P
SMDLHM6	SMDLHM6P	8.9	31.2	M6 x 10	13.5	4.8	3.0		SMDLHM6	SMDLHM6P
SMDLM6	SMDLM6P	1.3	15.6	M6 x 10	13.5	4.8	3.0		SMDLM6	SMDLM6P
SMDLHM8	SMDLHM8P	8.9	40.1	M8 x 1.25	14.3	4.8	3.4		SMDLHM8	SMDLHM8P
SMDLM8	SMDLM8P	2.2	20.0	M8 x 1.25	14.3	4.8	3.4		SMDLM8	SMDLM8P
SMDLHM10	SMDLHM10P	13.4	55.6	M10 x 1.5	15.9	4.8	4.7		SMDLHM10	SMDLHM10P
SMDLM10	SMDLM10P	6.7	33.4	M10 x 1.5	15.9	4.8	4.7		SMDLM10	SMDLM10P
SMDLHM12	SMDLHM12P	15.6	84.6	M12 x 1.75	19.1	6.4	6.3		SMDLHM12	SMDLHM12P
SMDLM12	SMDLM12P	7.6	37.8	M12 x 1.75	19.1	6.4	6.3		SMDLM12	SMDLM12P
SMDLHM16	SMDLHM16P	20.0	149.1	M16 x 2.0	27.0	7.95	7.9		SMDLHM16	SMDLHM16P
SMDLM16	SMDLM16P	8.9	46.7	M16 x 2.0	27.0	7.9	7.9		SMDLM16	SMDLM16P
