View All High Value Series Stud Style – Steel with Gold Chromate Finish

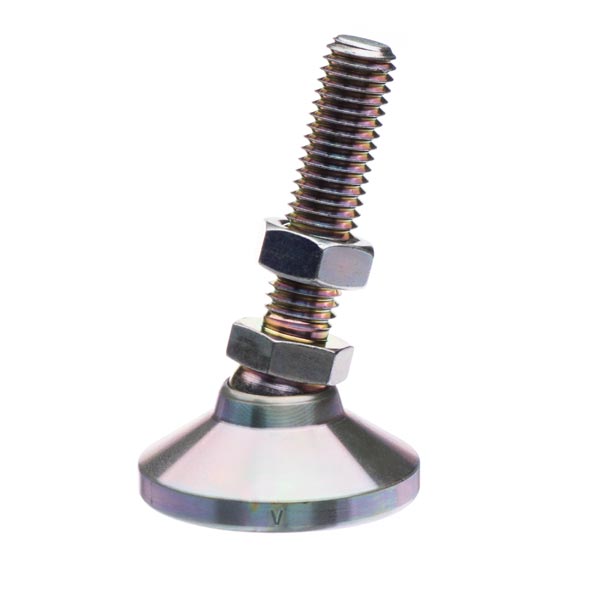

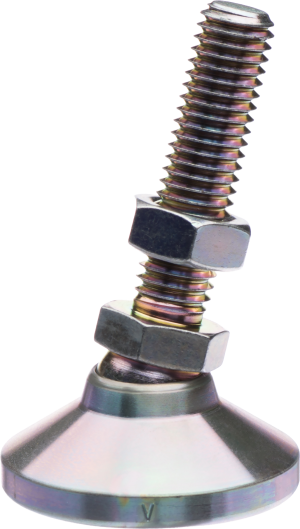

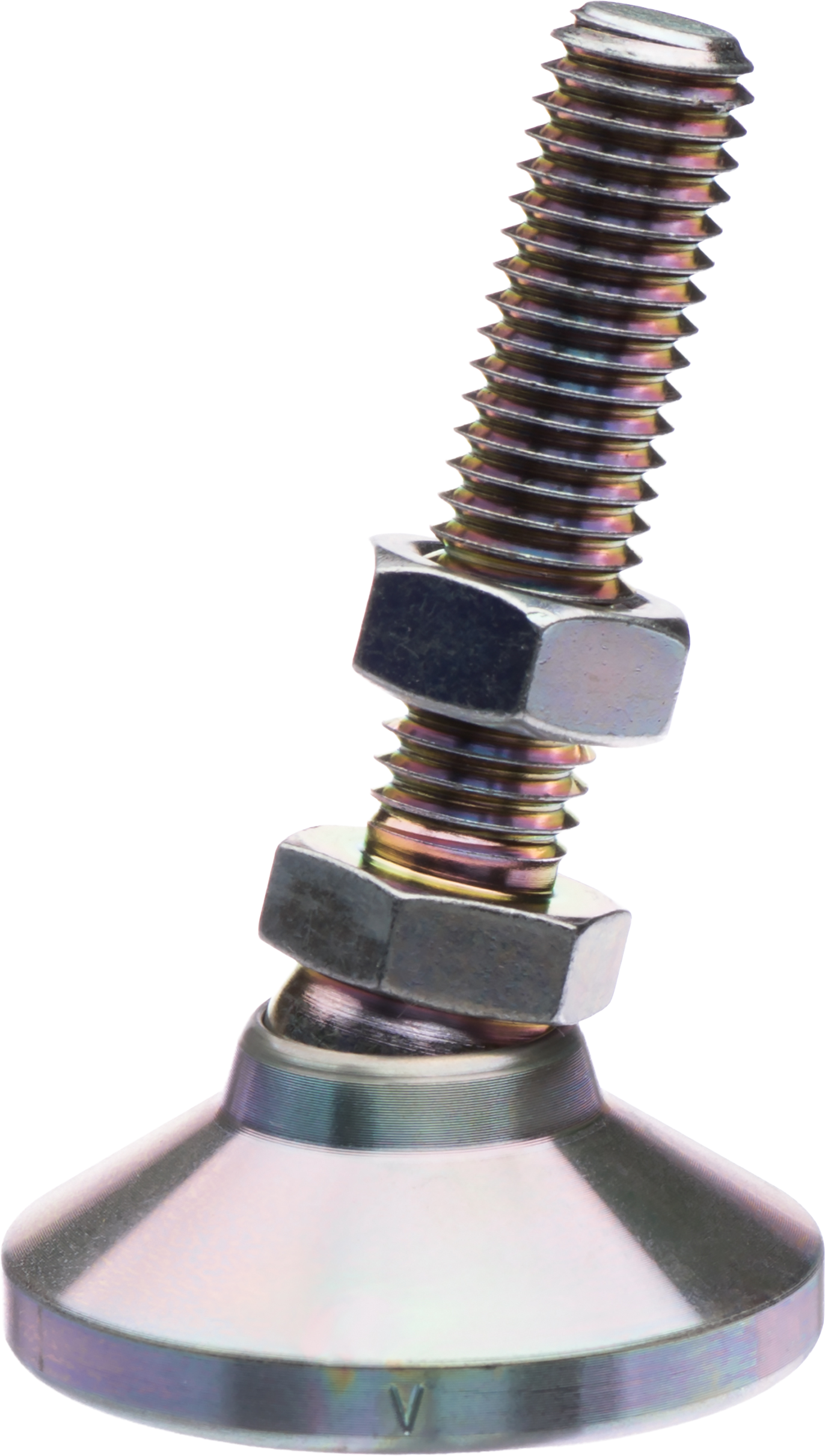

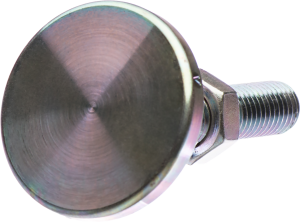

High Value Series Stud Style Leveling Devices – Steel with Gold Chromate Finish provide stud-mounted leveling with an integrally machined stud as part of the ball. The base swivels 15° off centerline to adjust to uneven surfaces for machine tools, electronic racks, benches, data storage equipment, power generation equipment and machine centers. The standard steel design is zinc plate with gold chromate finish and includes a hardened ball, stud with integrally machined hex and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum loads from 700–22,000 lbs., depending on size.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum load requirement (700–22,000 lbs.)
- Base diameter, stud length and envelope dimensions (A–F per table)
- Wrenching access requirement (integrally machined hex)
- Finish requirement (zinc plate with gold chromate finish)
Click any row to see CAD and additional product information, or to add to quote.

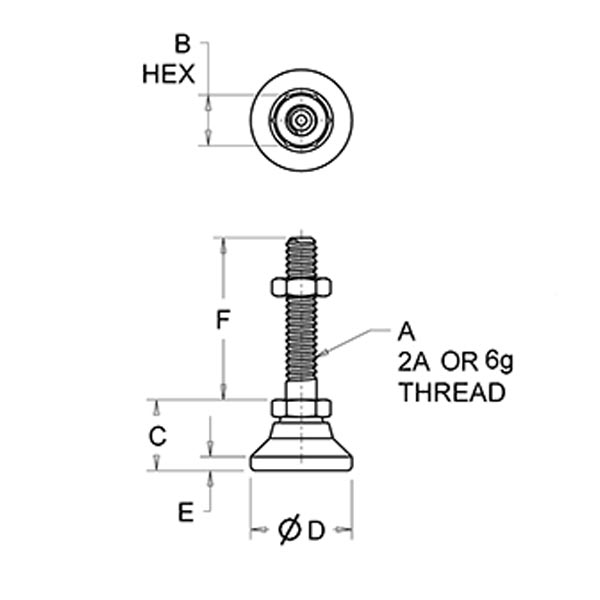

| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| HVP298S | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 1 | HVP298S | |
| HVP300S | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 1-1/4 | HVP300S | |
| HVP304S | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 2 | HVP304S | |
| HVP306S | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 2 | HVP306S | |
| HVP308S | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 2 | HVP308S | |
| HVP310S | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 2 | HVP310S | |
| HVP312S | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 4-1/4 | HVP312S |
