View All Original Series Socket Style with Elastomer Pad – Steel

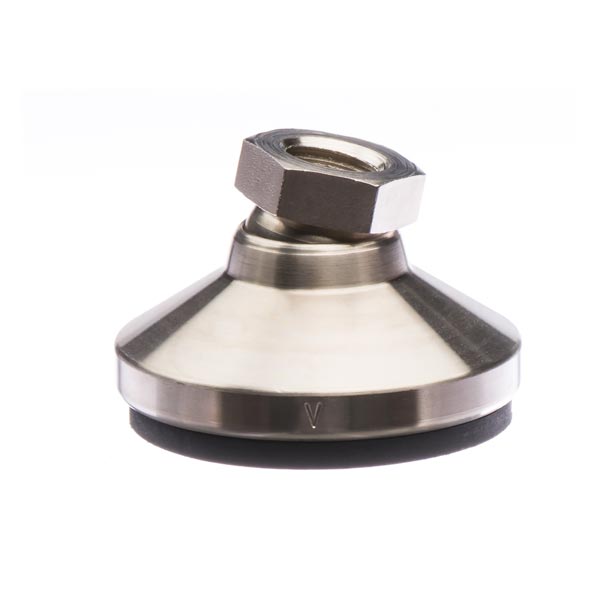

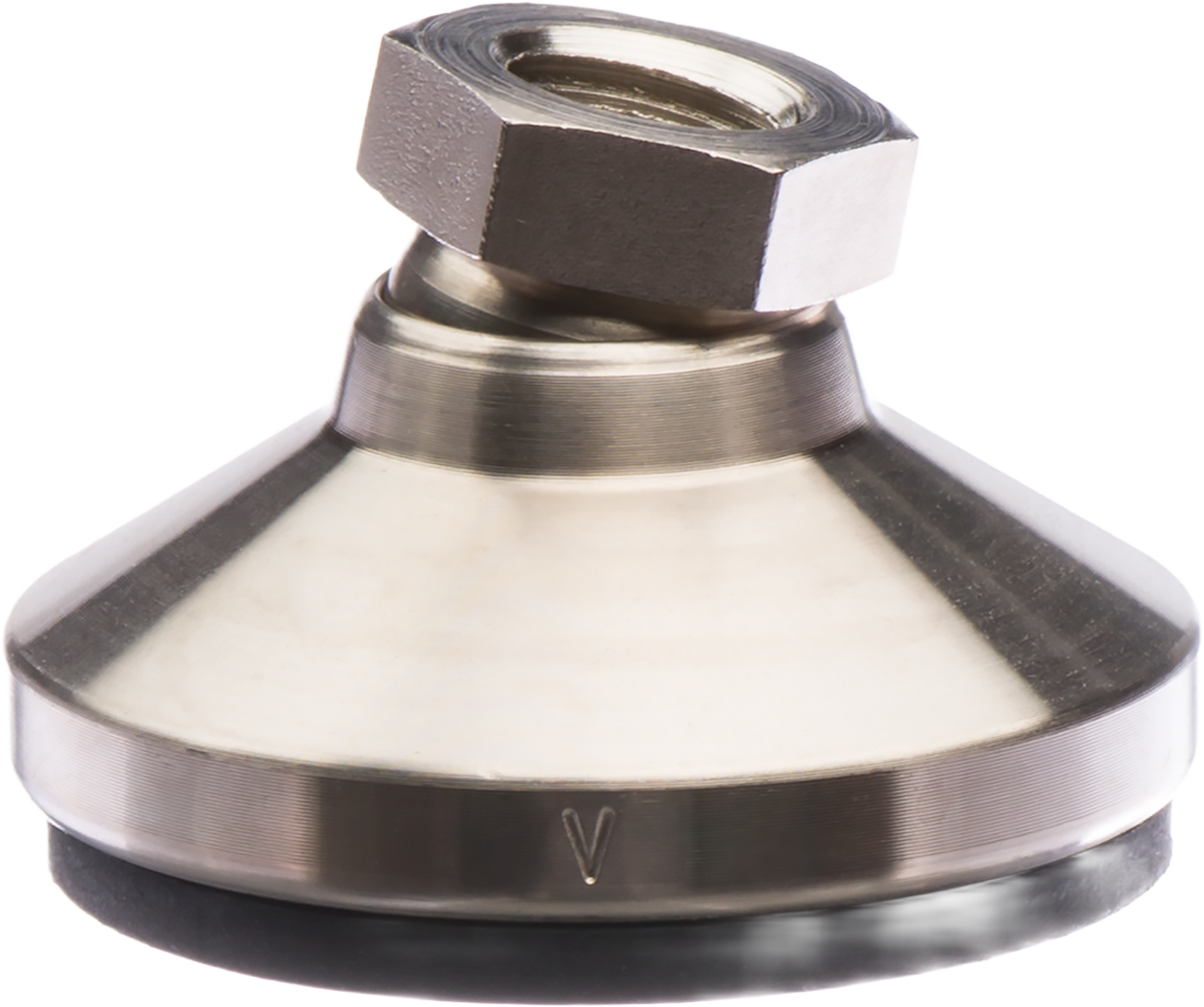

Original Series Socket Style Leveling Devices with Elastomer Pad – Steel are designed for applications with an existing stud installation and swivel 15° off centerline to accommodate uneven surfaces. A 0.125 in neoprene elastomer pad is bonded to the bottom of the base for non-skid support. Standard design is zinc plate with gold chromate finish and includes a hardened ball and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum loads 525–16,400 lbs. and metric threads M10 x 1.5–M20 x 2.5 with maximum loads 1,273–2,455 kg.
Specify by:
- Thread standard and size (ANSI or metric)
- Maximum load requirement
- Base diameter and swivel requirement (15° off centerline)
- Elastomer pad requirement (0.125 in neoprene)

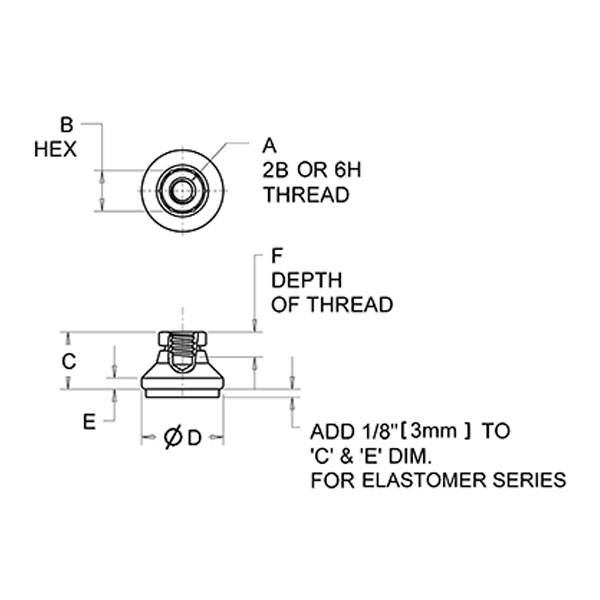

Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| EP298B | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | EP298B | |
| EP300B | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | EP300B | |
| EP304B | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | EP304B | |
| EP306B | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | EP306B | |
| EP308B | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | EP308B | |
| EP310B | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | EP310B | |
| EP312B | 16,400 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 13/16 | EP312B |
