View All Expanded Metric Series Plungers

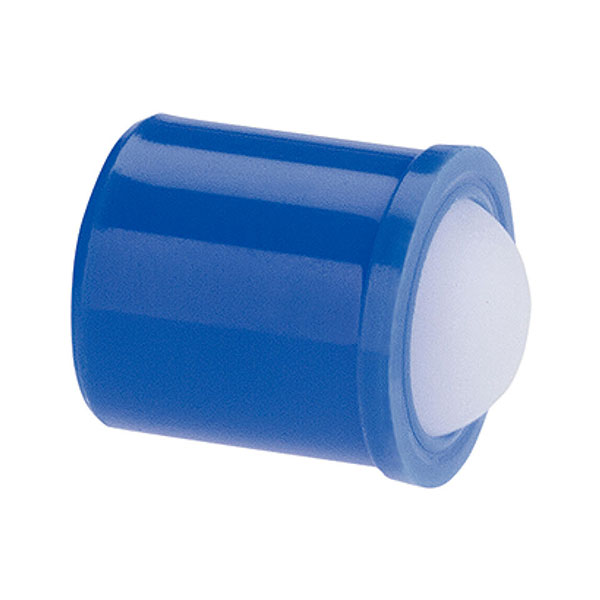

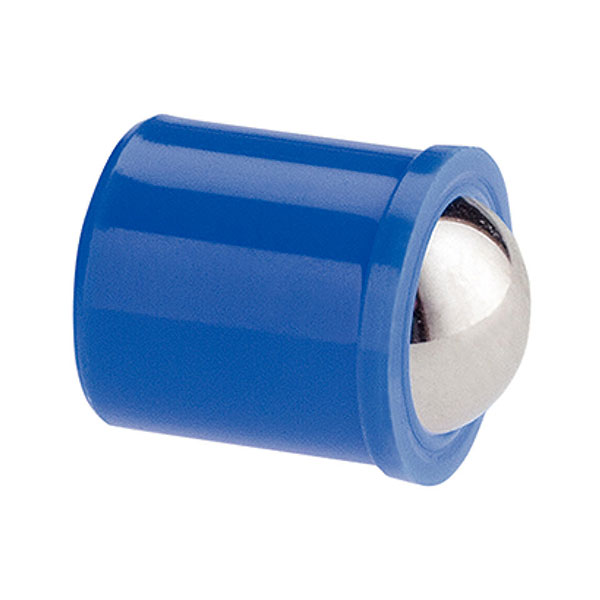

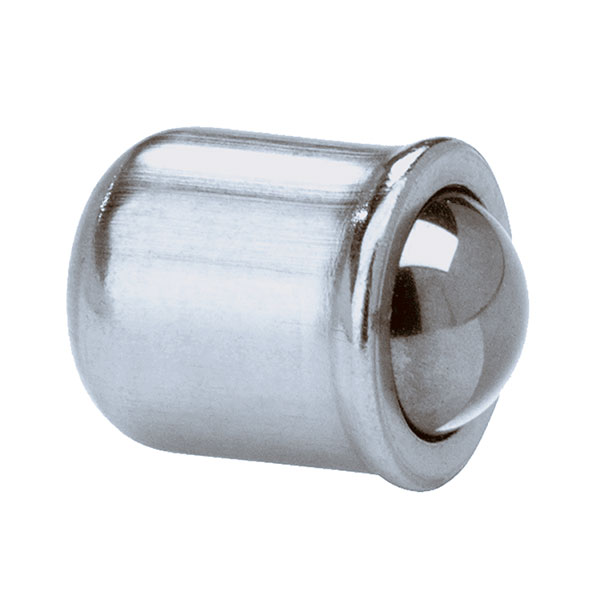

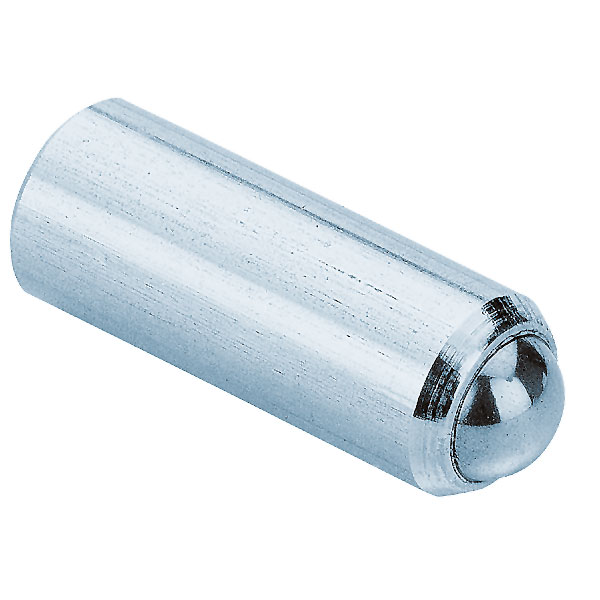

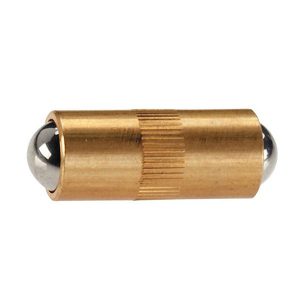

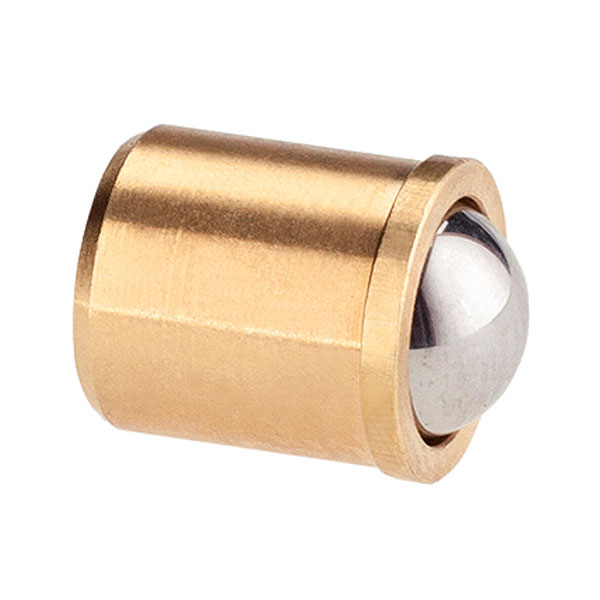

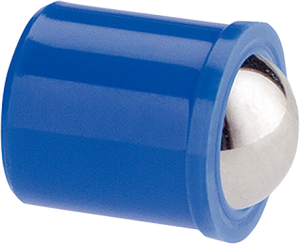

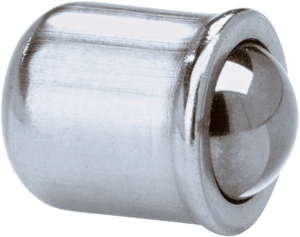

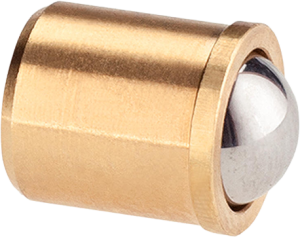

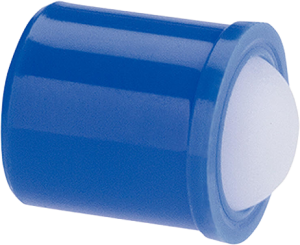

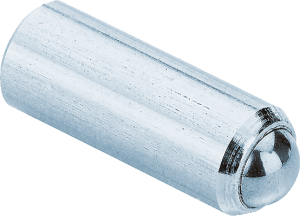

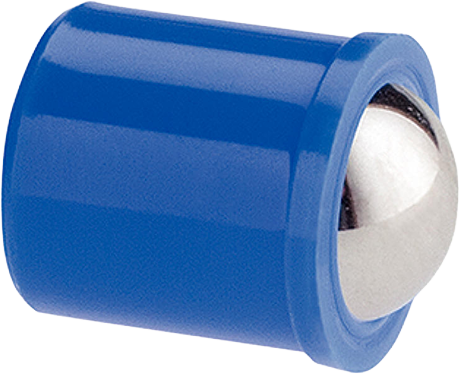

Expanded Metric Series Plungers are designed for easy installation where a threaded plunger is impractical or threaded adjustments are not required. Double-ended and single-ended styles are available, along with body material options in brass, stainless steel and Delrin®. Select from multiple end forces listed as initial and final values. Not available in inch.
Specify by:
- Style (double-ended or single-ended)
- Body material (brass, stainless steel or Delrin®)
- Contact option (Delrin® ball or stainless steel ball where listed)
- End force requirement (initial and final)

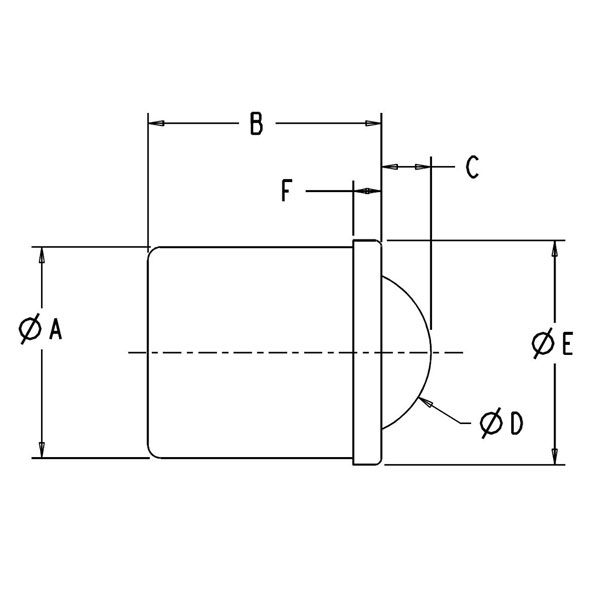

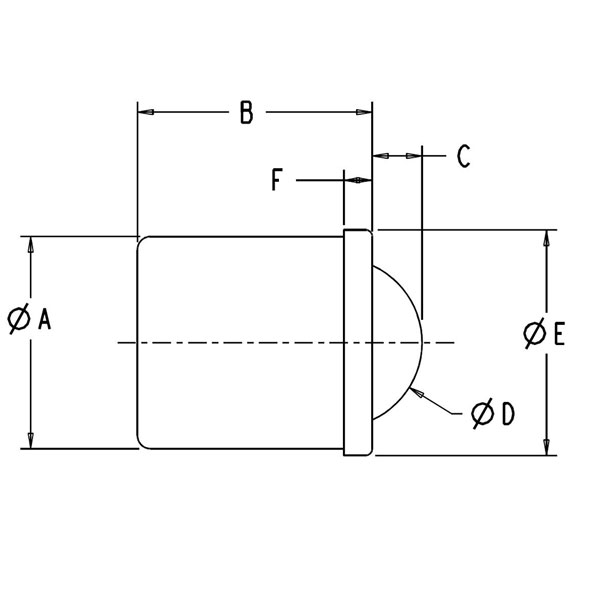

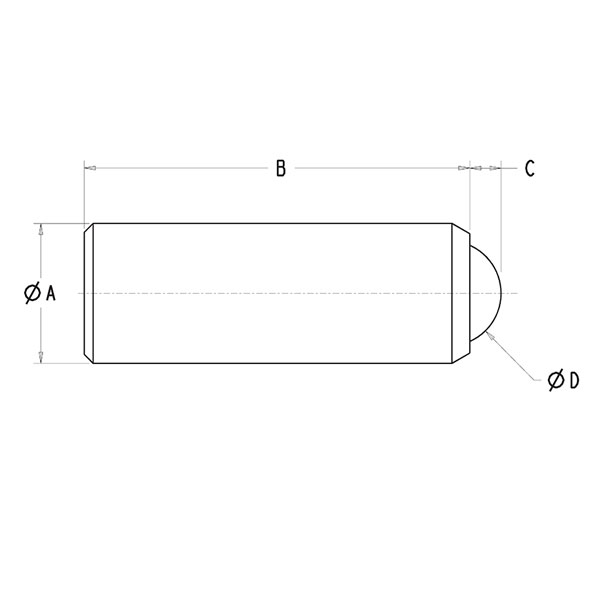

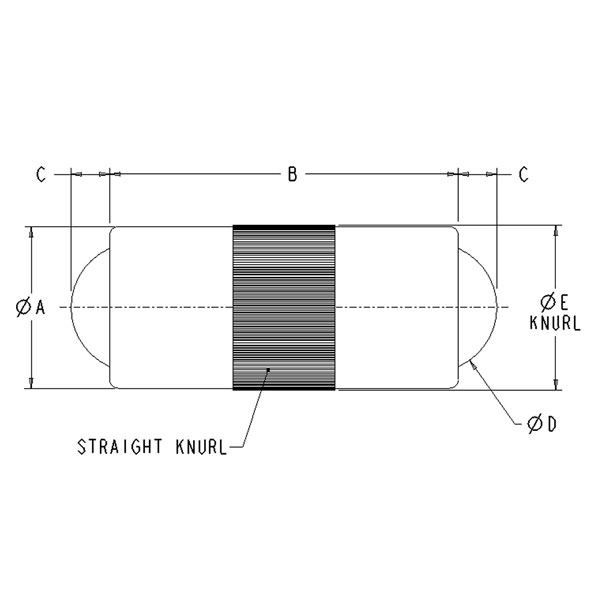

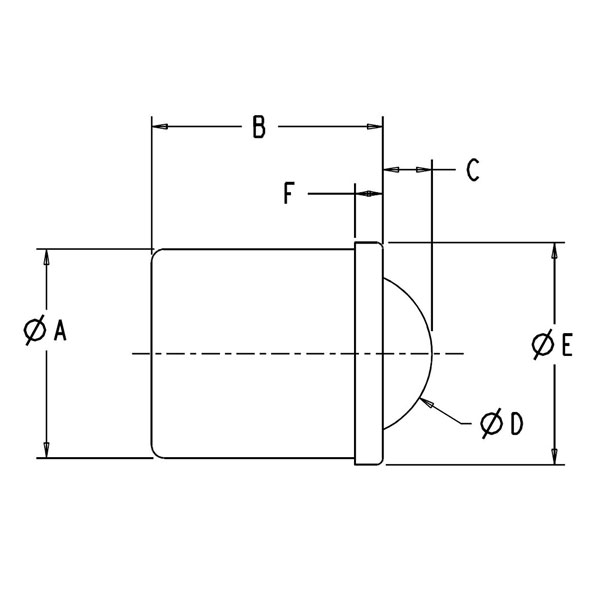

- Diameter and envelope dimensions (ØA and table dimensions)
Click any row to see CAD, additional product information, or to add to quote.

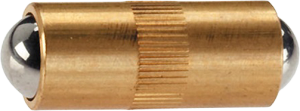

| Part No. | End Force, N | ØA | B | C | ØD | ØE | ROHS | CAD | |
| Initial | Final | ||||||||
| HBPFD25 | 1.3 | 2.5 | 2.5 | 5.3 | 0.65 | 2.0 | 2.52 | HBPFD25 | |
| HBPFD30 | 2.0 | 4.5 | 3.0 | 7.3 | 0.80 | 2.5 | 3.02 | HBPFD30 | |
| HBPFD40 | 2.5 | 7.5 | 4.0 | 9.0 | 0.90 | 3.0 | 4.03 | HBPFD40 | |
| HBPFD50 | 3.5 | 8.0 | 5.0 | 10.8 | 1.20 | 4.0 | 5.03 | HBPFD50 | |
| HBPFD70 | 4.0 | 12.0 | 7.0 | 14.0 | 2.00 | 6.0 | 7.03 | HBPFD70 | |
| HBPFD80 | 6.0 | 15.0 | 8.0 | 18.0 | 2.10 | 6.5 | 8.03 | HBPFD80 | |
