View All Original Series Socket Style with Elastomer Pad – Stainless Steel
Original Series Socket Style Leveling Devices with Elastomer Pad – Stainless Steel feature an elastomer pad bonded to the bottom of the base for non-skid support. The 0.125 in neoprene pad protects floors and surface finishes while stainless steel construction provides maximum protection from rust and corrosion. Key features include a hardened ball, integrally machined hex, large diameter base support and 15° swivel off centerline. Available in ANSI thread sizes 10–32 through 1/2–13 with maximum loads from 525–3,750 lbs., depending on size. Product not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1/2–13)
- Maximum load requirement (525–3,750 lbs.)

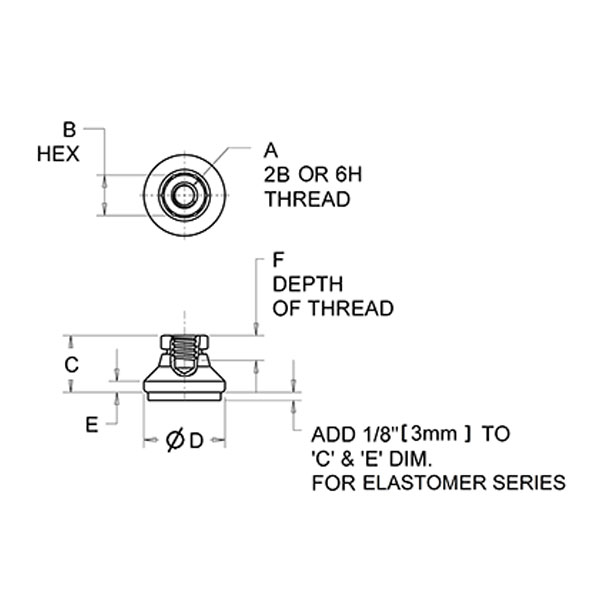

- Base and stud dimensions (A–F per table)

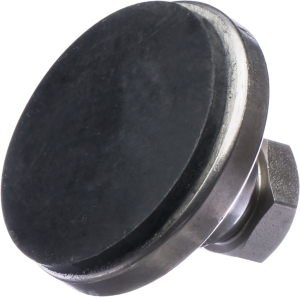

- Floor protection and non-skid requirement (0.125 in neoprene pad)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| ESSP298B | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | ESSP298B | |
| ESSP300B | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | ESSP300B | |
| ESSP304B | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | ESSP304B | |

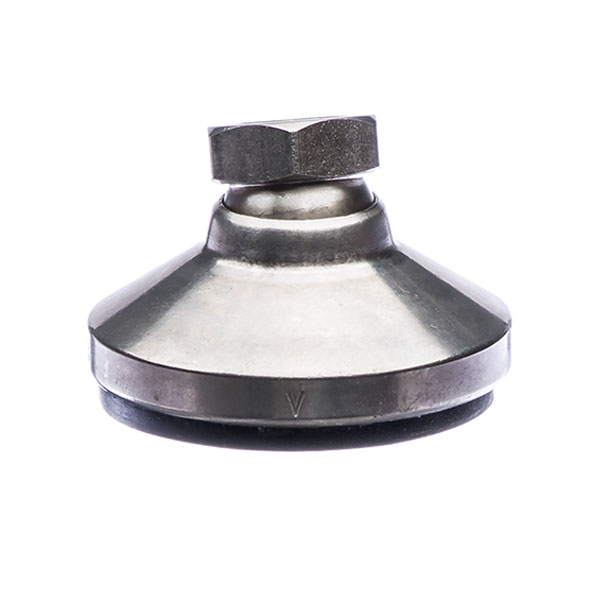

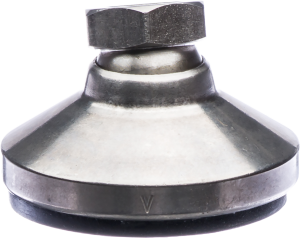

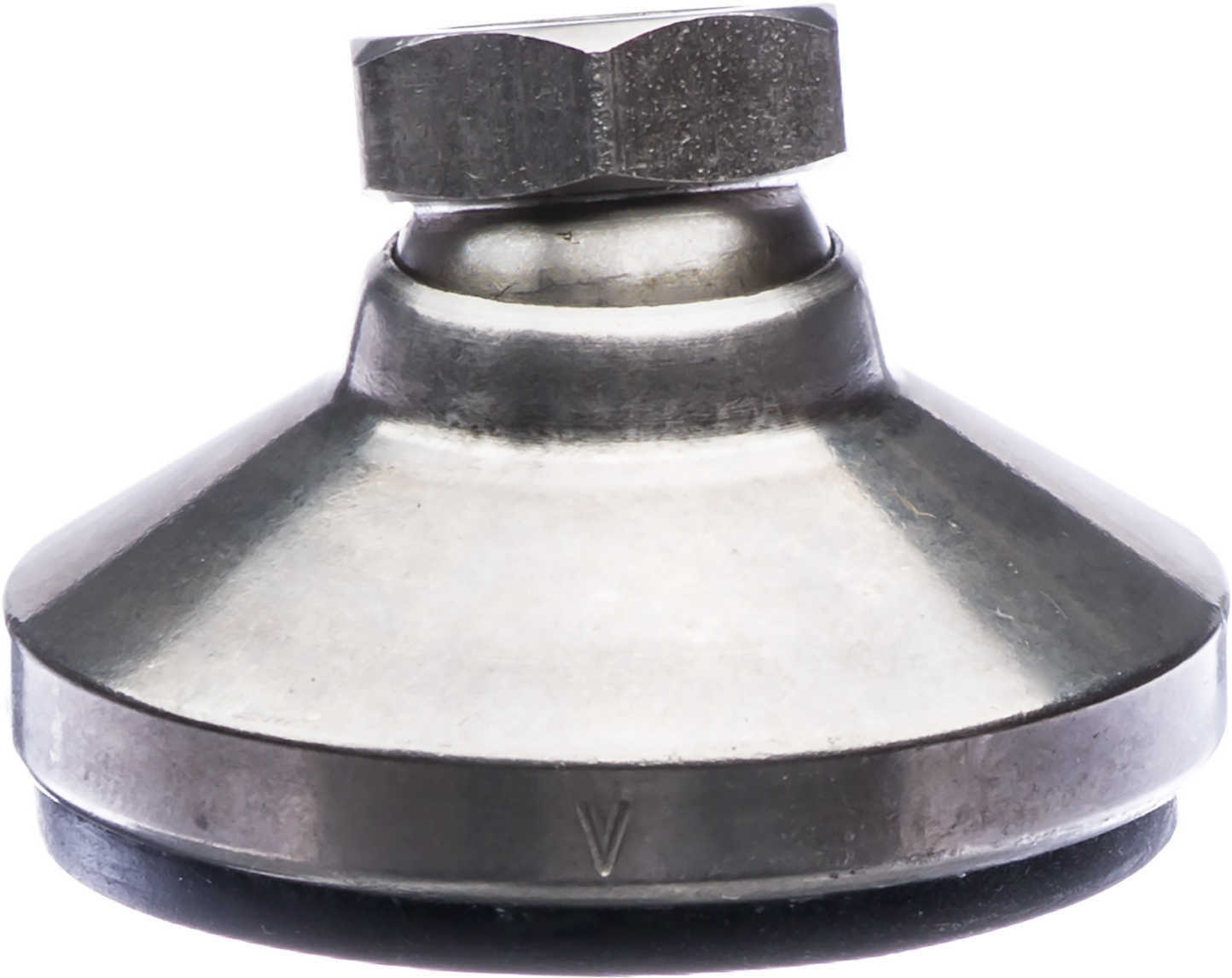

| ESSP306B | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | ESSP306B | |
| ESSP308B | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | ESSP308B | |
| ESSP310B | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | ESSP310B | |
| ESSP312B | 16,400 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 13/16 | ESSP312B |
