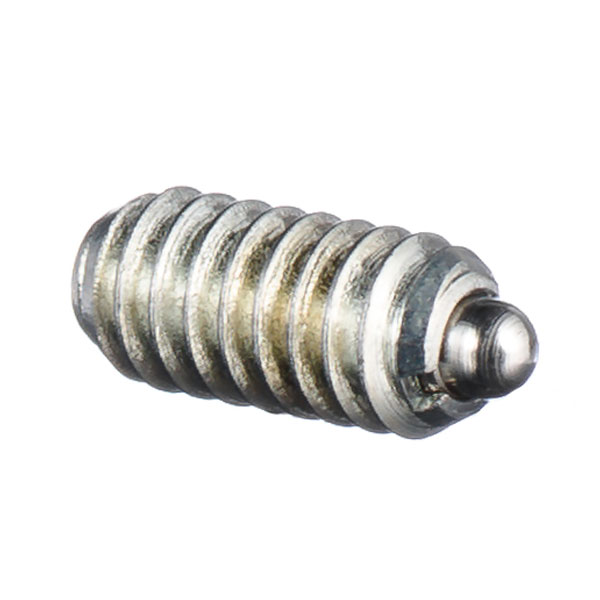

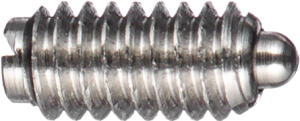

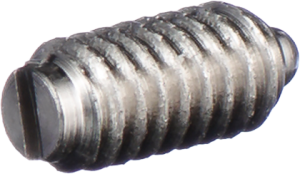

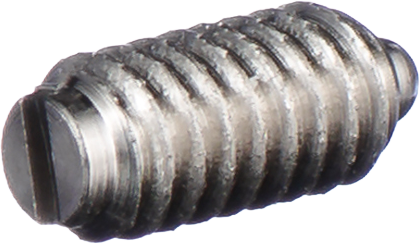

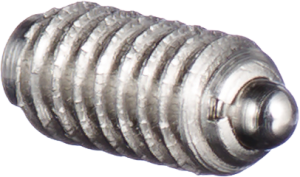

Stubby Plungers – Stainless Steel

Stubby Plungers – Stainless Steel are compact spring plungers that provide greater travel than ball plungers and less travel than standard spring plungers for restricted space applications. Use for indexing, detents, electrical contacts and part positioning. Features include a case hardened plunger, wear and corrosion resistance, intermediate travel and screwdriver installation. Available in ANSI thread sizes 8-32 through 5/8-11 and metric M4 x 0.7 through M16 x 2.0 with standard or light end forces and optional thread lock.

Specify by:

Thread standard and size (ANSI or metric)
End force requirement (standard or light)
Thread lock requirement

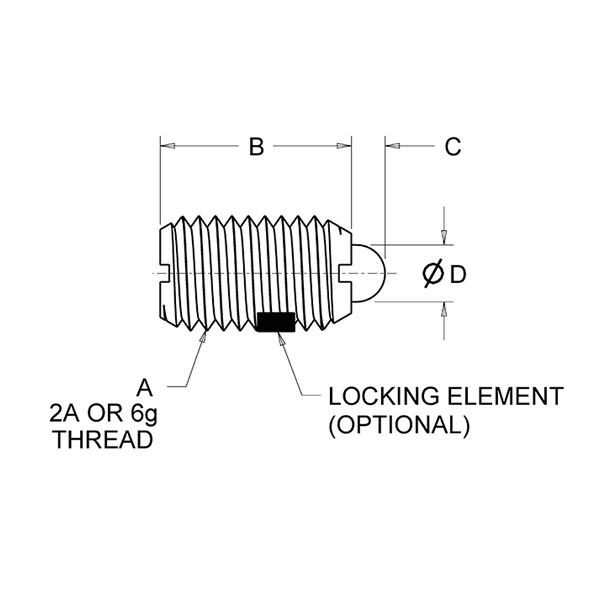

Mounting and stroke dimensions (A–D per table)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Metric Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.		End Force, (Lbs.)		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSM50A	SSM50AP	1-1/2	4-3/4	8-32	0.437	0.052	0.070		SSM50A	SSM50AP
SSM50	SSM50P	1-1/2	4-3/4	8-36	0.437	0.052	0.070		SSM50	SSM50P
SSM52	SSM52P	1-3/4	6-1/4	10-32	0.468	0.065	0.093		SSM52	SSM52P
SSM54	SSM54N	3.0	10-1/2	1/4-20	0.531	0.078	0.119		SSM54	SSM54N
SSM56	SSM56N	3-3/4	15-1/2	5/16-18	0.562	0.084	0.135		SSM56	SSM56N
SSM58	SSM58N	4-1/2	18-1/2	3/8-16	0.625	0.110	0.186		SSM58	SSM58N
SSM60	SSM60N	5.0	28.0	1/2-13	0.750	0.151	0.248		SSM60	SSM60N
SSM62	SSM62N	7.0	50.0	5/8-11	1.062	0.215	0.310		SSM62	SSM62N

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Stubby Plungers – Stainless Steel

Stubby plungers offer greater travel than ball plungers and less travel than standard plungers. These compact spring plungers offer substantial plunger travel and high end forces, making them ideal for restricted space applications.

Special Features

Case hardened plunger
Wear & corrosion resistance
Compact size
Allows some side loading
Intermediate travel
Screwdriver installation

(1/3)

Start a Quote

Find a Distributor

Print Page

Typical Uses

Limited space
Indexing
Electrical contacts
Part positioning
Detents

Part No.		End Force, N		A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSMHM4	SSMHM4P	7.0	21.0	M4 x 0.7	11.1	1.3	1.8		SSMHM4	SSMHM4P
SSMM4	SSMM4P	2.0	7.0	M4 x 0.7	11.1	1.3	1.8		SSMM4	SSMM4P
SSMHM5	SSMHM5P	8.0	28.0	M5 x 0.8	11.9	1.7	2.4		SSMHM5	SSMHM5P
SSMM5	SSMM5P	3.0	11.0	M5 x 0.8	11.9	1.7	2.4		SSMM5	SSMM5P
SSMHM6	SSMHM6P	13.0	47.0	M6 x 10	13.5	2.0	3.0		SSMHM6	SSMHM6P
SSMM6	SSMM6P	4.0	16.0	M6 x 10	13.5	2.0	3.0		SSMM6	SSMM6P
SSMHM8	SSMHM8P	17.0	69.0	M8 x 1.25	14.3	2.1	3.4		SSMHM8	SSMHM8P
SSMM8	SSMM8P	6.0	18.0	M8 x 1.25	14.3	2.1	3.4		SSMM8	SSMM8P
SSMHM10	SSMHM10P	20.0	82.0	M10 x 1.5	15.9	2.8	4.7		SSMHM10	SSMHM10P
SSMM10	SSMM10P	7.0	22.0	M10 x 1.5	15.9	2.8	4.7		SSMM10	SSMM10P
SSMHM12	SSMHM12P	22.0	125.0	M12 x 1.75	19.1	3.8	6.3		SSMHM12	SSMHM12P
SSMM12	SSMM12P	8.0	24.0	M12 x 1.75	19.1	3.8	6.3		SSMM12	SSMM12P
SSMHM16	SSMHM16P	31.0	222.0	M16 x 2.0	27.0	5.5	7.9		SSMHM16	SSMHM16P
SSMM16	SSMM16P	9.0	38.0	M16 x 2.0	27.0	5.5	7.9		SSMM16	SSMM16P
