View All Standard Spring Plungers – Steel with Delrin® Nose

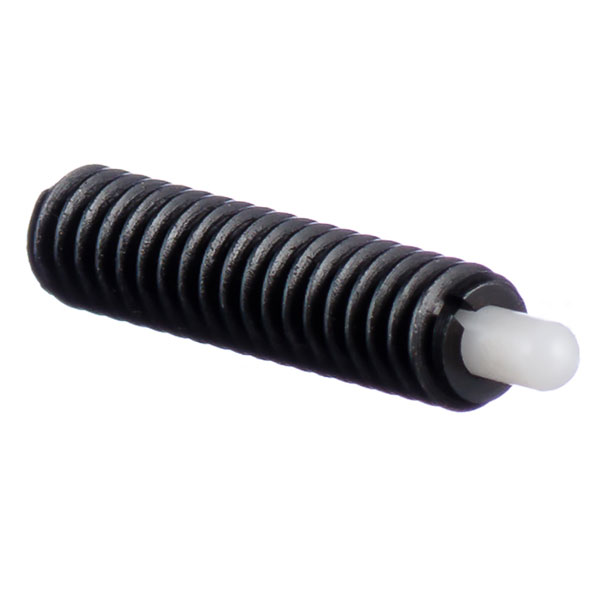

Standard Spring Plungers – Steel With Delrin® Nose are threaded spring loaded devices for positioning, indexing, detents, latching and ejecting where a non-marring tip is required on aluminum, brass or other soft, easily marred materials. The insulating Delrin® nose is reinforced to minimize deformation under force and provides high dielectric strength, wear resistance and a self-lubricating surface. Available in ANSI thread sizes 8-32 through 5/8-11 and metric M4 x 0.7 through M16 x 2.0 with standard or light end forces and optional thread lock.
Specify by:
- Thread standard and size (ANSI or metric)
- Required travel
- End force requirement (initial, mid and final where listed)
- Thread lock requirement
Click any row to see CAD and additional product information, or to add to quote.

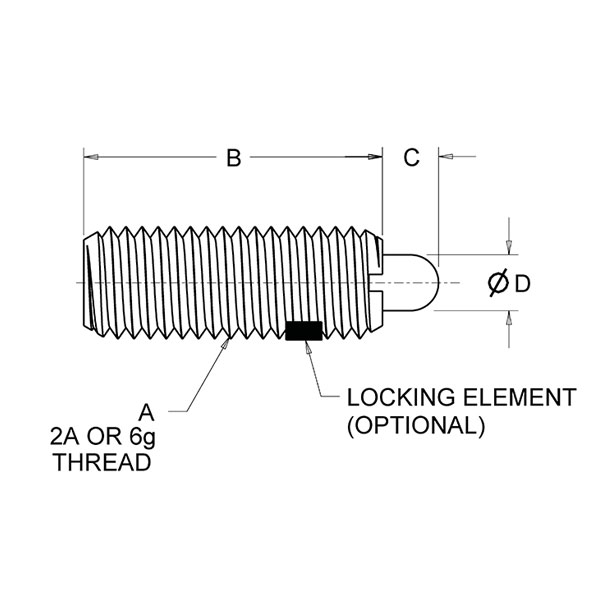

| Part No. | End Force, (Lbs.) | A | B | C | D | ROHS | CAD | CAD With Thread Lock |
|||
| With Thread Lock | Initial | Mid. | Final | ||||||||
| NNS50 | NNS50P | 2.7 | 5.0 | 7.3 | 8-32 | 0.63 | 0.094 | 0.070 | NNS50 | NNS50P | |
| NNS52 | NNS52P | 2.9 | 7.0 | 11.1 | 10-32 | 0.75 | 0.125 | 0.920 | NNS52 | NNS52P | |
| NNS54 | NNS54N | 3.0 | 8.0 | 13.0 | 1/4-20 | 1.00 | 0.188 | 0.118 | NNS54 | NNS54N | |
| NNS54A | NNS54AN | 3.0 | 8.0 | 13.0 | 1/4-28 | 1.00 | 0.188 | 0.118 | NNS54A | NNS54AN | |
| NNS56 | NNS56N | 3.0 | 9.0 | 15.0 | 5/16-18 | 1.00 | 0.188 | 0.135 | NNS56 | NNS56N | |
| NNS58 | NNS58N | 5.5 | 10.0 | 14.5 | 3/8-16 | 1.13 | 0.188 | 0.187 | NNS58 | NNS58N | |
| NNS60 | NNS60N | 6.6 | 12.0 | 17.4 | 1/2-13 | 1.25 | 0.250 | 0.248 | NNS60 | NNS60N | |
| NNS62 | NNS62N | 10.5 | 18.0 | 25.5 | 5/8-11 | 1.50 | 0.313 | 0.310 | NNS62 | NNS62N | |
