View All High Value Series Socket Style with Elastomer Pad – Steel with Gold Chromate Finish

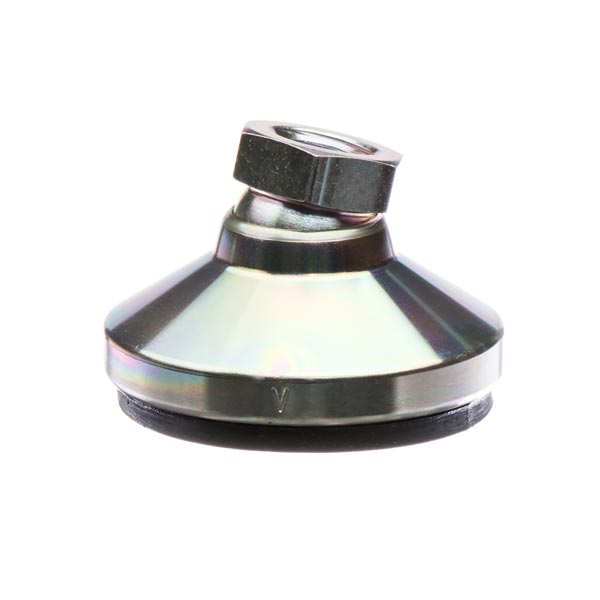

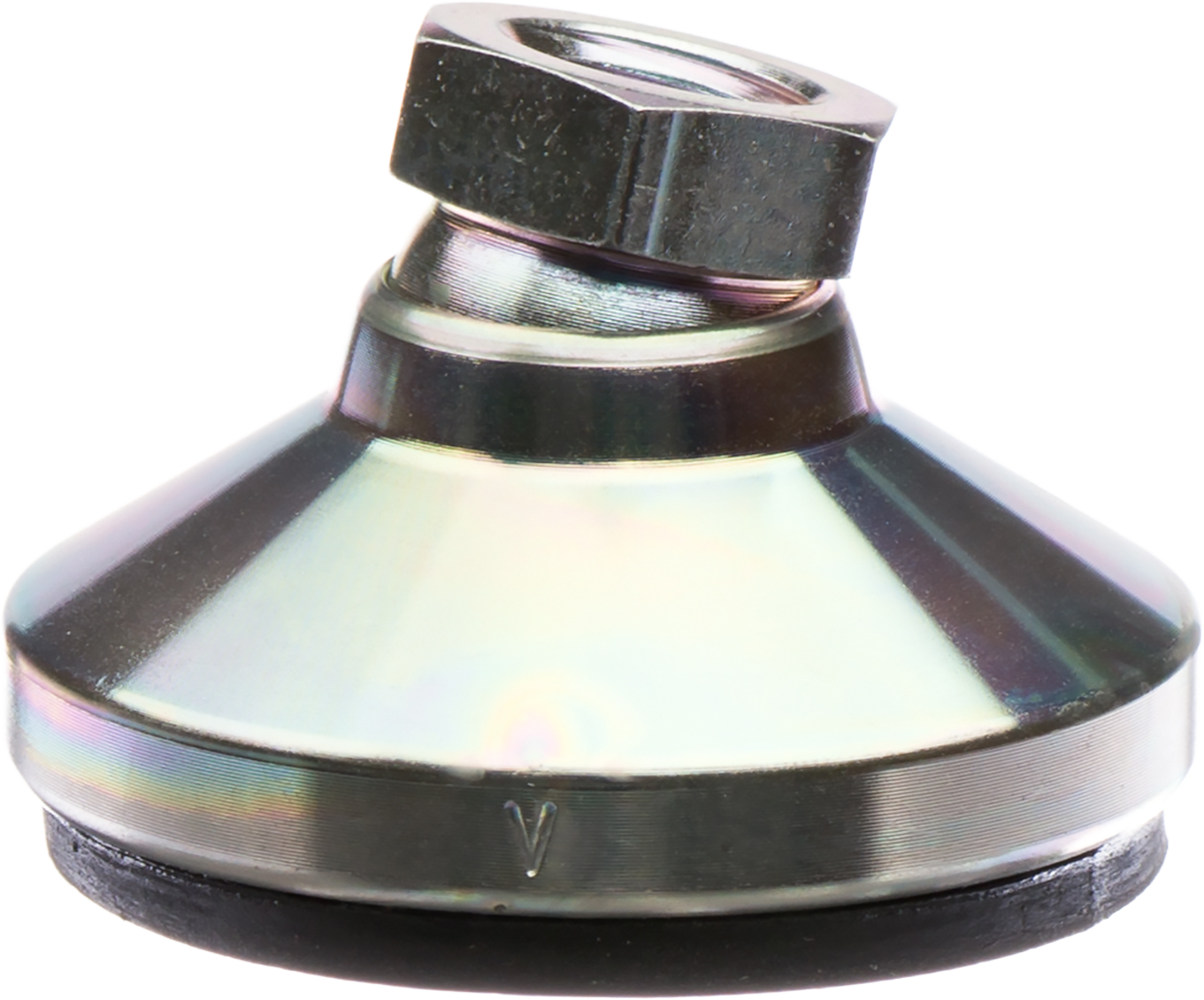

High Value Series Socket Style Leveling Devices with Elastomer Pad – Steel with Gold Chromate Finish are premium quality leveling devices with optimum plating, finishing and cosmetics. A 0.125” neoprene elastomer pad is bonded to the bottom of the base for non-skid support that protects floor and surface finishes. These levelers provide stable, secure leveling with a large diameter base support, a hardened ball, an integrally machined hex and 15° swivel off centerline. Available in ANSI threads 10–32 through 1–8 with max loads 525–16,000 lbs., and metric threads M6 x 1–M24 x 3 with max loads 240–7,500 kg.
Specify by:
- Thread standard and size (ANSI or metric)
- Maximum load requirement

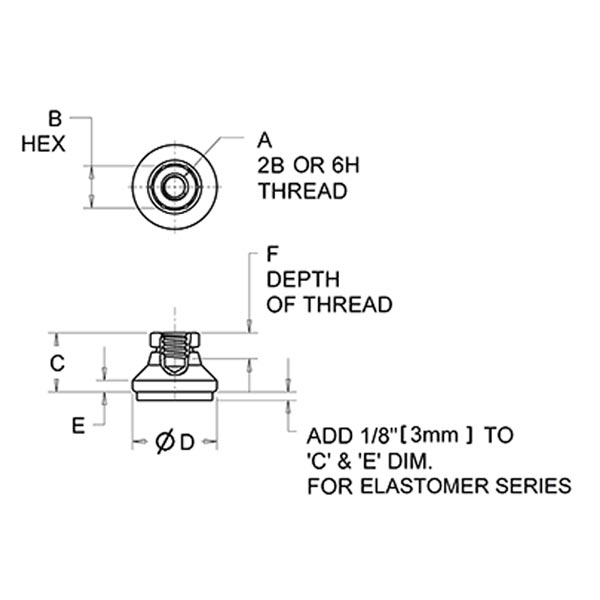

- Base and envelope dimensions (A–F per table)
- Finish requirement (gold chromate)
- Floor protection requirement (elastomer pad)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C* | D | E | F | ROHS | CAD |
| HVEP298B | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | HVEP298B | |
| HVEP300B | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | HVEP300B | |
| HVEP304B | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | HVEP304B | |
| HVEP306B | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | HVEP306B | |
| HVEP308B | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | HVEP308B | |
| HVEP310B | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | HVEP310B | |
| HVEP312B | 16,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 3/16 | HVEP312B |
