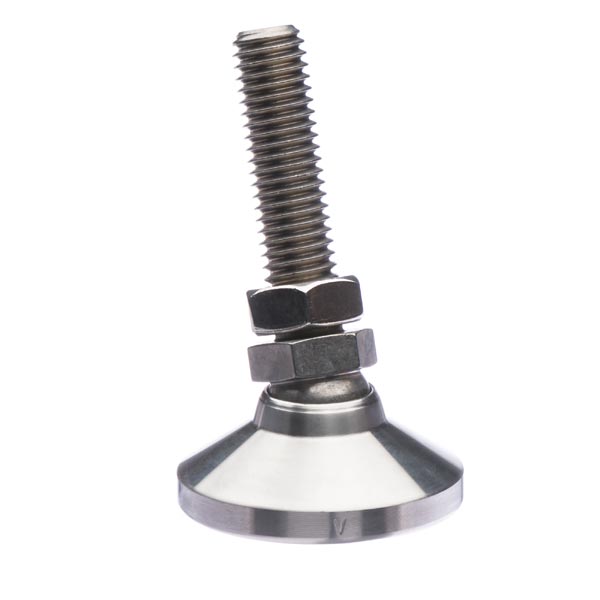

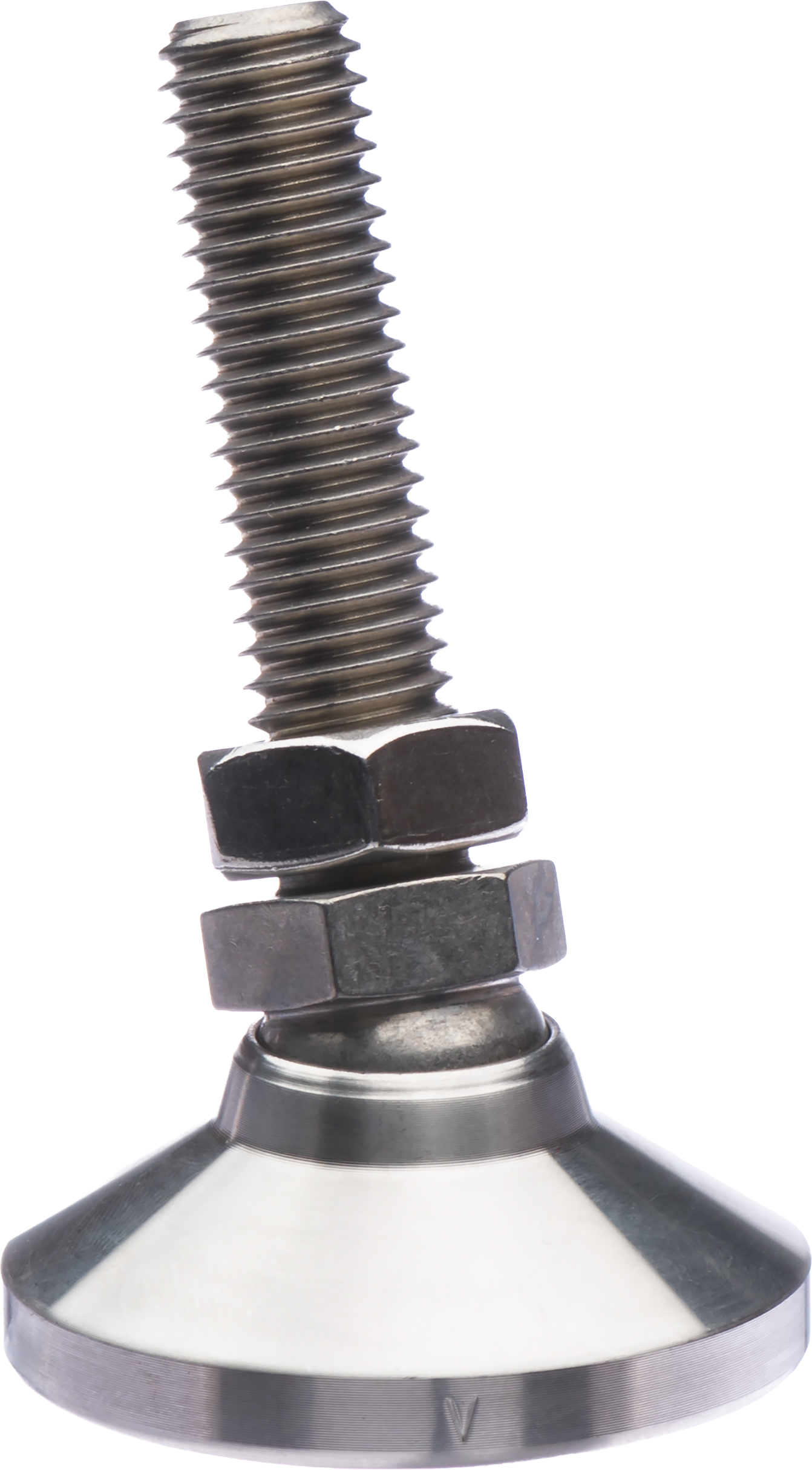

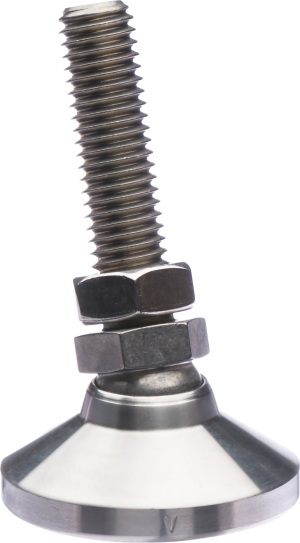

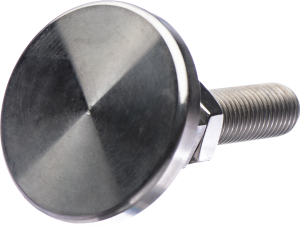

High Value Series Stud Style Leveling Devices – Stainless Steel provide stud-mounted leveling with an integrally machined stud as part of the ball. The base swivels 15° off centerline to compensate for uneven surfaces and level machine tools, electronic racks, benches, data storage equipment, power generation equipment and machine centers. Stainless steel construction provides maximum protection from rust and corrosion. Available in ANSI threads 10–32 through 1–8 and metric threads M6 x M24 x 3 with maximum loads up to 22,000 lbs. and 9,979 kg, depending on size.
Specify by:
- Thread standard and size (ANSI or metric)
- Maximum load requirement
- Base diameter and swivel requirement (15° off centerline)
- Stud length and wrenching access (integrally machined hex)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| HVSSP298S | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 1 | HVSSP298S | |
| HVSSP300S | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 1-1/4 | HVSSP300S | |
| HVSSP304S | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 2 | HVSSP304S | |
| HVSSP306S | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 2 | HVSSP306S | |
| HVSSP308S | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 2 | HVSSP308S | |
| HVSSP310S | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 2 | HVSSP310S | |
| HVSSP312S | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 4-1/4 | HVSSP312S |
