View All High Value Series Stud Style Extended Length – Steel with Nickel Finish

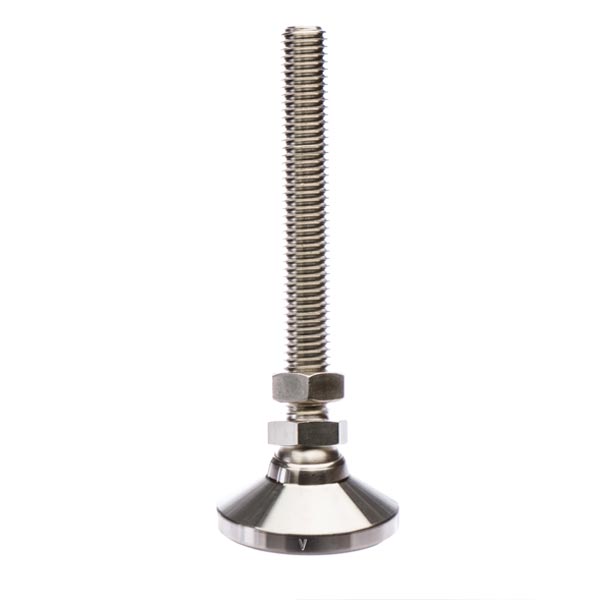

High Value Series Stud Style Extended Length Leveling Devices – Steel with Nickel Finish provide stud-mounted leveling with added clearance for uneven surfaces. The integrally machined stud is part of the ball and the base swivels 15° off centerline. Features include a hardened ball, extended stud with integrally machined hex and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum loads from 700–22,000 lbs., depending on size. Product not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum load requirement (700–22,000 lbs.)

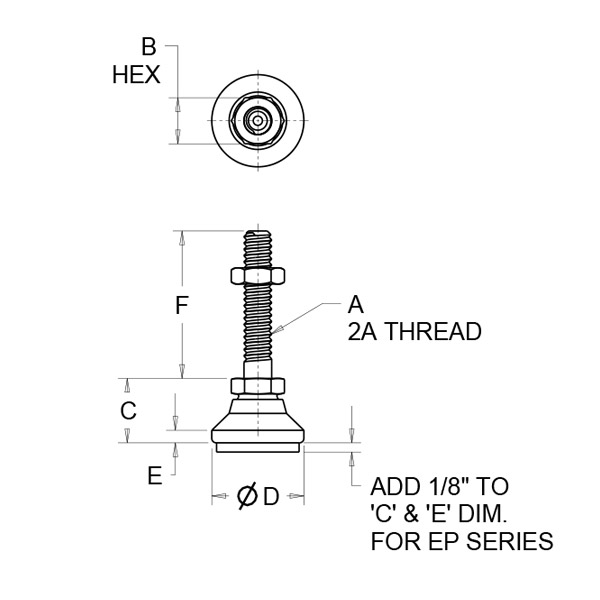

- Stud length and envelope dimensions (A–F per table)
- Base diameter and swivel requirement (15° off centerline)
- Finish requirement (nickel)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| HVP299S3 | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 2 | HVP299S3 | |
| HVP301S3 | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 2 1/2 | HVP301S3 | |
| HVP305S3 | 3,750 | 3/8-16 | 5/8 | 7/8 | 1 1/4 | 3/16 | 4 | HVP305S3 | |
| HVP307S3 | 5,000 | 1/2-13 | 3/4 | 1 1/8 | 1 7/8 | 1/4 | 4 | HVP307S3 | |
| HVP309S3 | 6,000 | 5/8-11 | 7/8 | 1 1/4 | 2 1/2 | 5/16 | 4 | HVP309S3 | |
| HVP311S3 | 7,200 | 3/4-10 | 1 1/16 | 1 1/2 | 3 | 1/2 | 4 | HVP311S3 | |
| HVP313S3 | 22,000 | 1-8 | 1 3/8 | 1 7/8 | 4 | 13/32 | 8 | HVP313S3 |
