View All High Value Series Stud Style with Elastomer Pad – Steel with Gold Chromate Finish

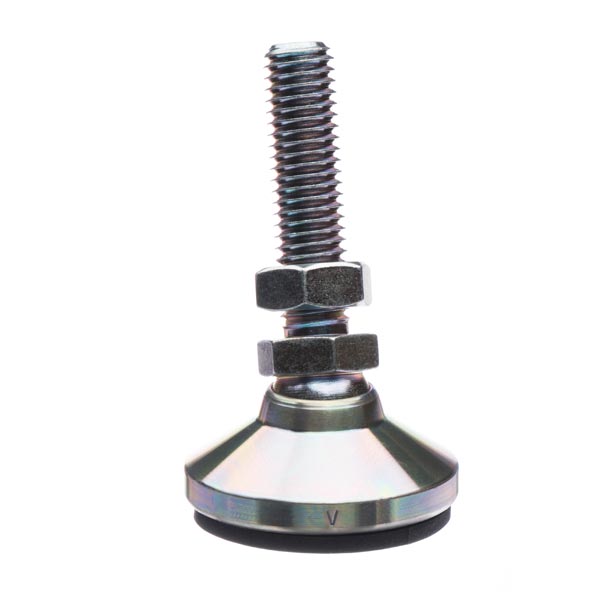

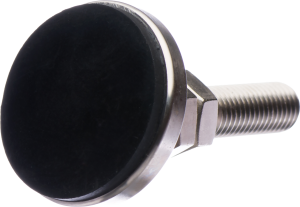

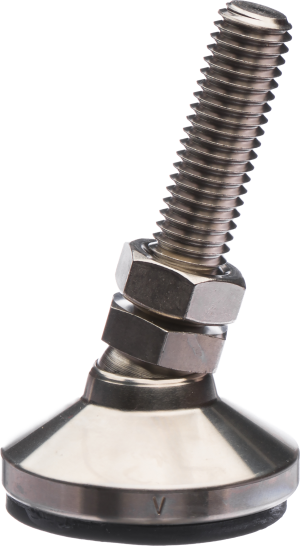

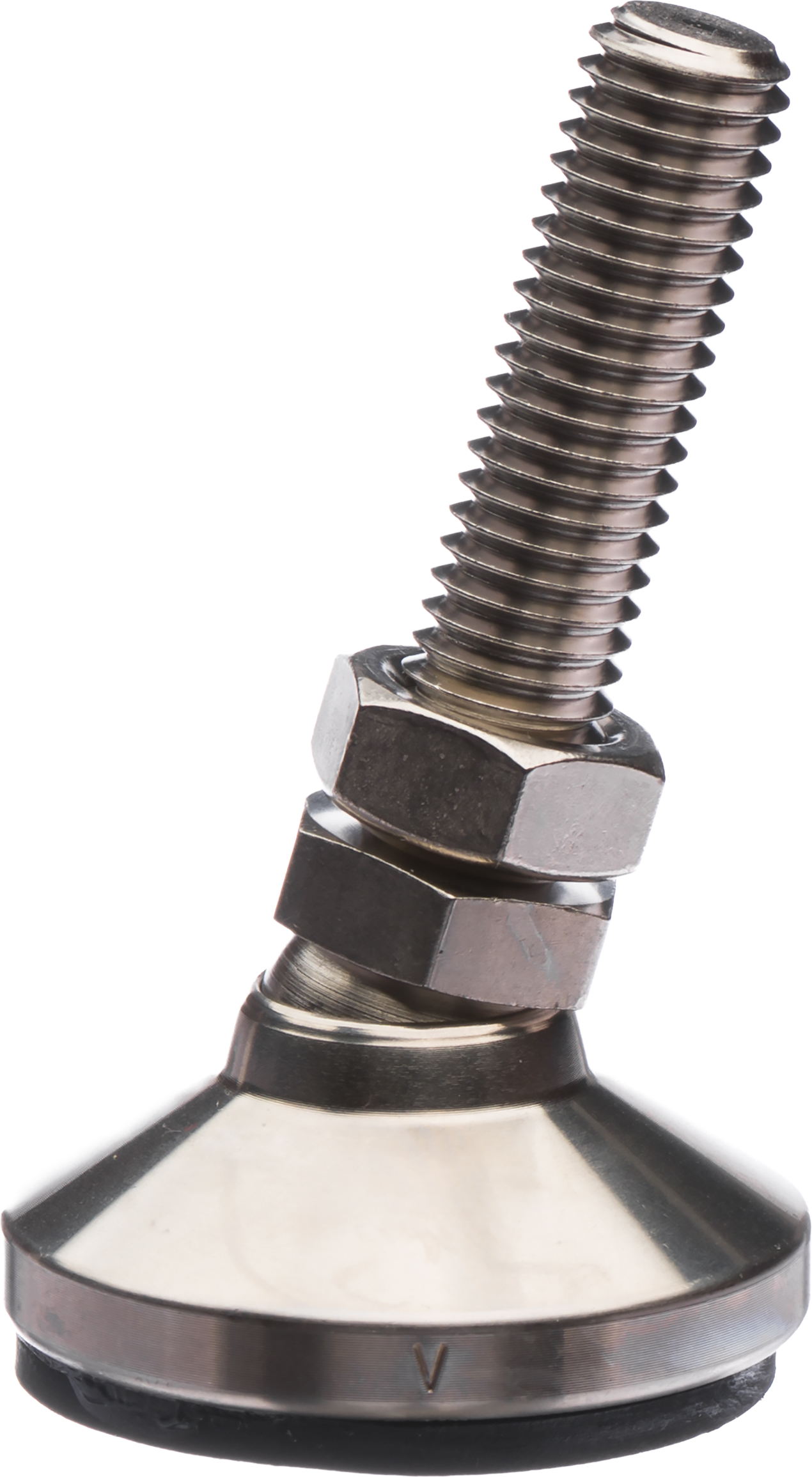

High Value Series Stud Style Leveling Devices with Elastomer Pad – Steel with Gold Chromate Finish provide stud-mounted leveling with an integrally machined stud as part of the ball. The base swivels 15° off centerline to adjust to uneven surfaces. A 0.125” neoprene elastomer pad is bonded to the bottom of the base for non-skid support and floor protection. Steel units feature zinc plate with gold chromate finish and are available in ANSI threads 10–32 through 1–8 with maximum loads from 525–16,400 lbs., depending on size. Not available in metric.
Specify by:
- Thread size (ANSI)
- Maximum load requirement
- Stud length and base dimensions (A–F per table)
- Floor protection requirement (elastomer pad)
- Finish requirement (gold chromate)
Click any row to see CAD and additional product information, or to add to quote.

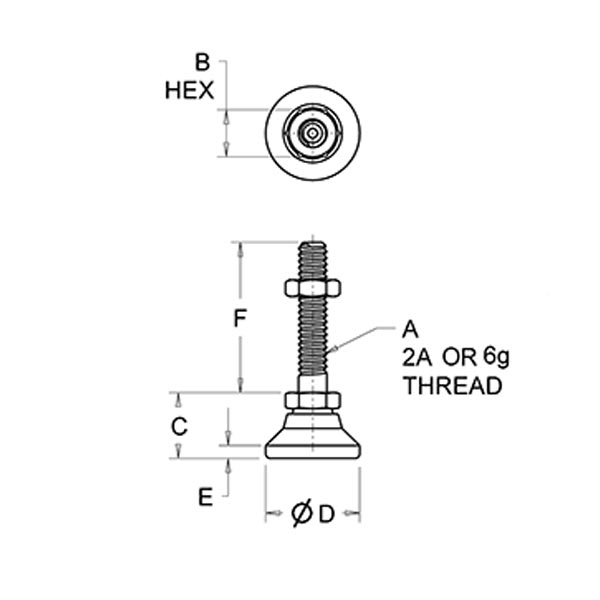

| Part No. | Max Load (Lbs.) | A | B | C* | D | E | F | ROHS | CAD |
| HVEP298S | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 1 | HVEP298S | |
| HVEP300S | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 1-1/4 | HVEP300S | |
| HVEP304S | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 2 | HVEP304S | |
| HVEP306S | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 2 | HVEP306S | |
| HVEP308S | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 2 | HVEP308S | |
| HVEP310S | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 2 | HVEP310S | |
| HVEP312S | 16,400 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 4-1/4 | HVEP312S |
