Delrin® Ball Plungers

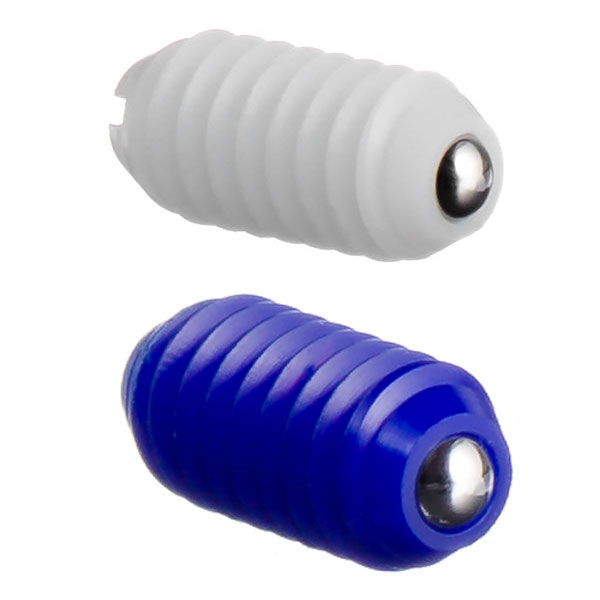

Delrin® Ball Plungers are compact spring loaded devices for lightweight applications where products or components are made mostly or entirely of plastic. They provide electrical isolation, a durable non-marring contact point and controlled end forces with side-load tolerance. Available with a stainless steel ball or nylon ball in ANSI thread sizes 1/4-20 through 3/8-16. Not available in metric. Steel models are zinc plated with black, gold or clear chromate and a stainless steel spring is standard.

Specify by:

Thread size (ANSI 1/4-20, 5/16-18, 3/8-16)
Ball material (stainless steel or nylon)
End force (initial and final)
Body material and finish (steel or stainless steel, zinc plate finish for steel)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

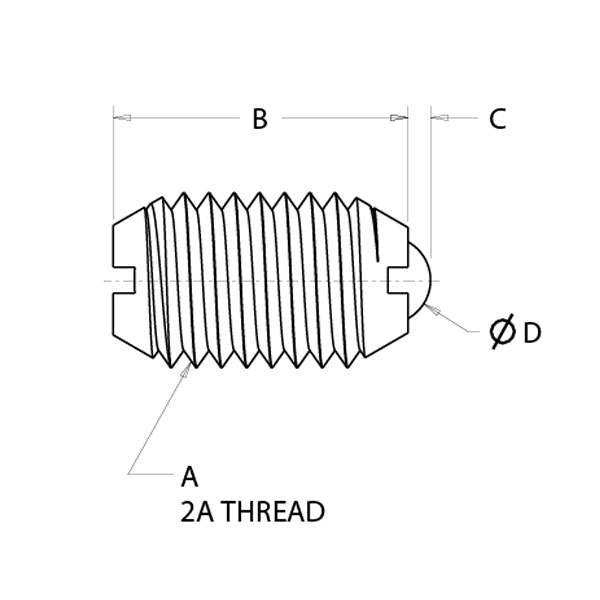

Part No.	Body Color Code	End Force, (Lbs)		A	B	C	D	ROHS	CAD
	Body Color Code	Initial	Final	A	B	C	D	ROHS	CAD
D54	White	2.0	5.0	1/4-20	0.531	0.027	0.125		D54
DL54	White	1.0	2.5	1/4-20	0.531	0.027	0.125		DL54
D56	White	4.0	9.0	5/16-18	0.578	0.039	0.156		D56
DL56	White	2.0	4.5	5/16-18	0.578	0.039	0.156		DL56
D58	White	5.0	10.0	3/8-16	0.625	0.053	0.187		D58
DL58	White	2.5	5.0	3/8-16	0.625	0.053	0.187		DL58

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Delrin® Ball Plungers

Delrin^® ball plungers with stainless steel or nylon plastic ball are ideal for applications where products or components are made mostly or entirely of plastic.
