View All High Value Series Socket Style – Stainless Steel

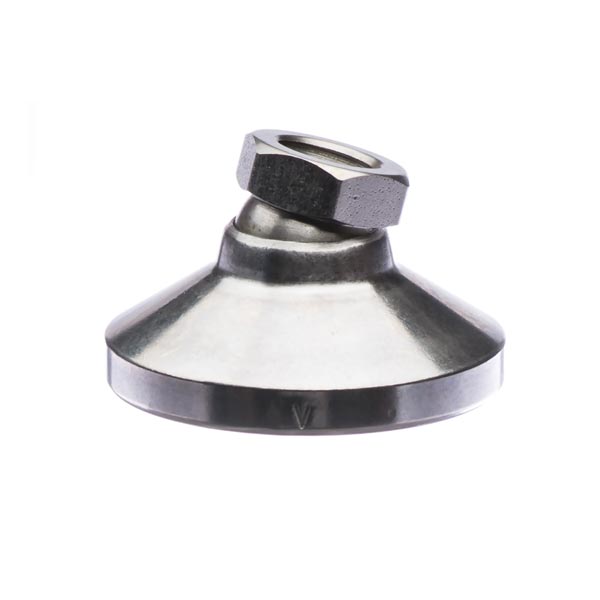

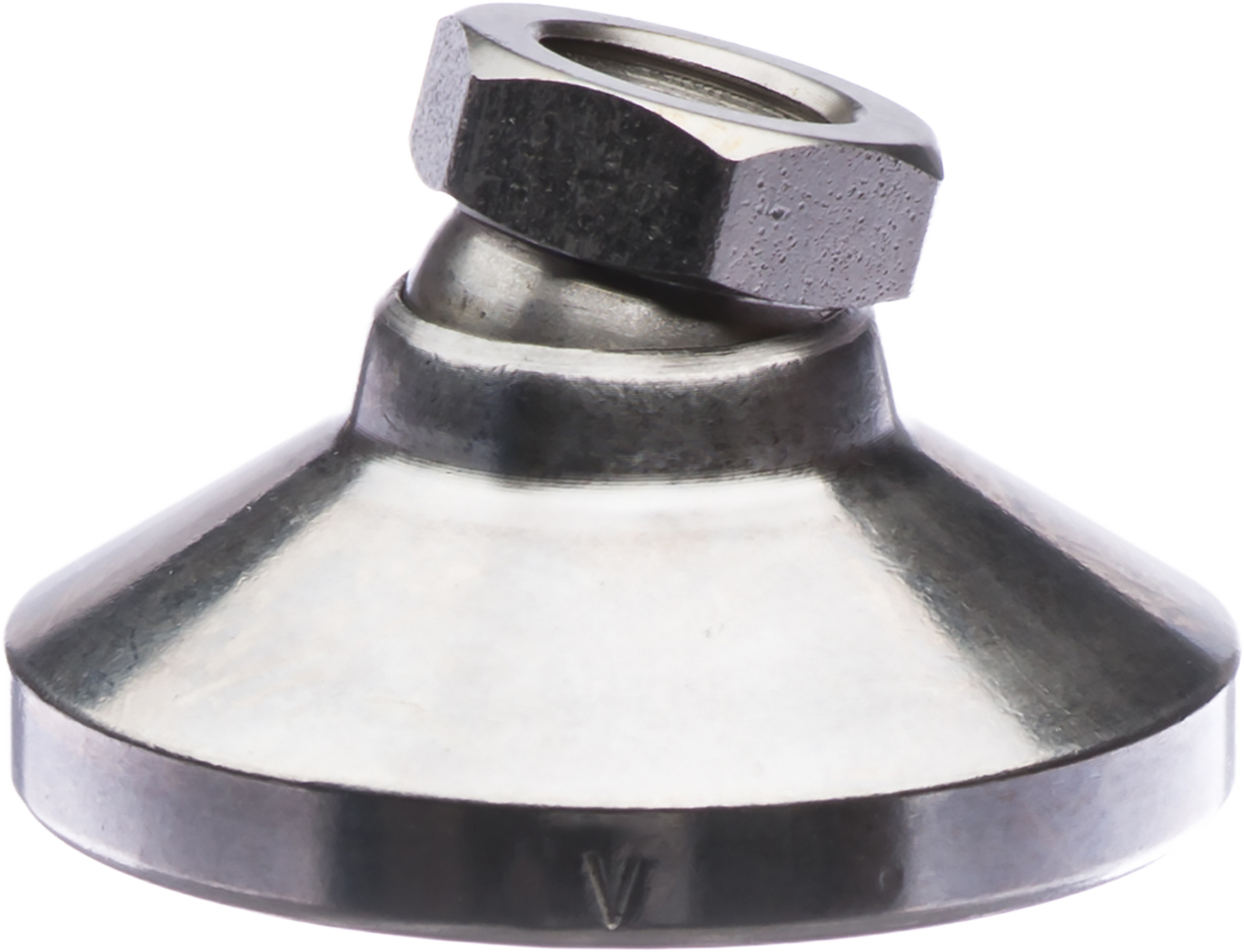

High Value Series Socket Style Leveling Devices – Stainless Steel provide stable, secure leveling with a large diameter base support and a base that swivels 15° off centerline. Stainless steel construction resists rust and corrosion. Features include a hardened ball and integrally machined hex. Available in ANSI threads 10–32 through 1–8 with maximum loads 700–22,000 lbs. and metric threads M6 x 1–M24 x 3 with maximum loads 318–9,979 kg, depending on size.
Specify by:
- Thread standard and size (ANSI or metric)
- Maximum load requirement

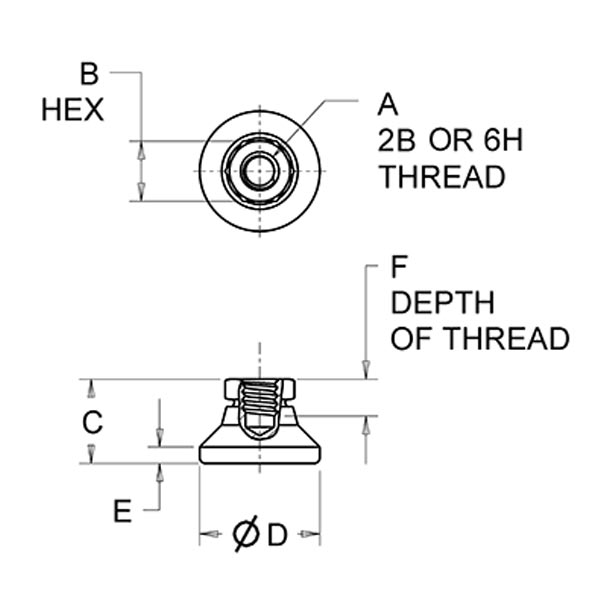

- Base and envelope dimensions (A–F per table)
- Swivel requirement (15° off centerline)
- Wrenching access requirement (integrally machined hex)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | Part No. |
| HVSSP298B | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | HVSSP298B | |
| HVSSP300B | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | HVSSP300B | |
| HVSSP304B | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | HVSSP304B | |
| HVSSP306B | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | HVSSP306B | |
| HVSSP308B | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | HVSSP308B | |
| HVSSP310B | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | HVSSP310B | |
| HVSSP312B | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 13/16 | HVSSP312B |
