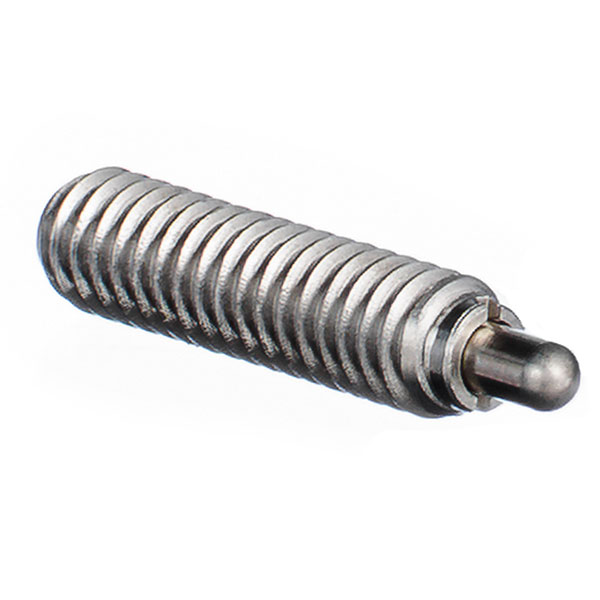

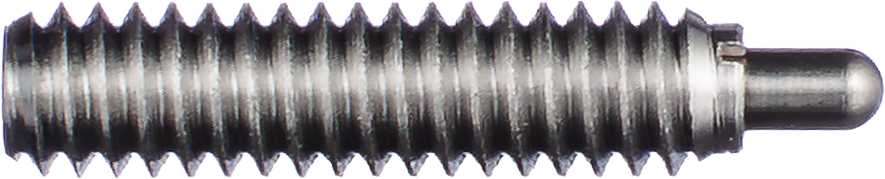

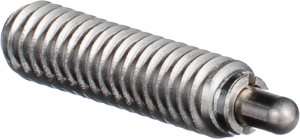

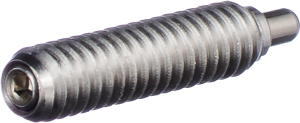

Standard Spring Plungers – Stainless Steel

Standard Spring Plungers – Stainless Steel are threaded spring loaded devices used for positioning, indexing, detent and latching functions where long travel and a large bearing surface are required. Stainless steel construction withstands high temperatures and provides maximum protection against rust and corrosion. Available in ANSI thread sizes 6-32 through 1-8 and metric M4 through M16 with heavy or light end forces and optional thread lock.

Specify by:

Thread standard and size (ANSI or metric)
Required travel
End force profile (heavy or light)
Thread lock requirement

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Metric Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

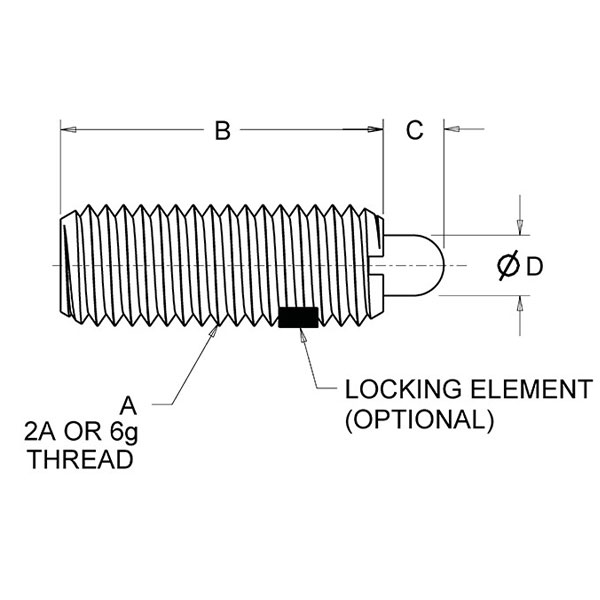

Part No.		End Force, (Lbs.)			A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Mid.	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
SSS48	SSS48P	1.5	3.0	4.5	6-32	0.53	0.063	0.045		SSS48	SSS48P
SSS48A	SSS48AP	1.0	1.3	1.6	6-32	0.38	0.063	0.045		SSS48A	SSS48AP
SSS50	SSS50P	2.7	5.0	7.3	8-32	0.63	0.094	0.070		SSS50	SSS50P
SSS52	SSS52P	2.9	7.0	11.1	10-32	0.75	0.125	0.092		SSS52	SSS52P
SSS54	SSS54N	3.0	8.0	13.0	1/4-20	1.00	0.188	0.118		SSS54	SSS54N
SSS54A	SSS54AN	3.0	8.0	13.0	1/4-28	1.00	0.188	0.118		SSS54A	SSS54AN
SSS54B	SSS54BN	2.0	5.5	9.0	1/4-20	0.75	0.125	0.118		SSS54B	SSS54BN
SSS56	SSS56N	3.0	9.0	15.0	5/16-18	1.00	0.188	0.135		SSS56	SSS56N
SSS58	SSS58N	5.5	10.0	14.5	3/8-16	1.13	0.188	0.187		SSS58	SSS58N
SSS60	SSS60N	6.6	12.0	17.4	1/2-13	1.25	0.250	0.248		SSS60	SSS60N
SSS62	SSS62N	10.5	18.0	25.5	5/8-11	1.50	0.313	0.310		SSS62	SSS62N
SSS64	SSS64N	6.7	22.0	37.3	3/4-10	1.75	0.313	0.374		SSS64	SSS64N
SSS66	SSS66N	16.0	42.0	68.0	1-8	2.41	0.500	0.498		SSS66	SSS66N

Conversion Calculators

Enter known value in place of X to view results.

Metric & Inch conversion:

Inch

Lbf/Newton Conversion:

lbf

Standard Spring Plungers – Stainless Steel

Our standard spring plungers offer long travel, large bearing surfaces and numerous design and material options including an optional locking element. The stainless steel design withstands high temperatures and affords the added benefit of maximum protection against rust and corrosion.

Special Features

Easy installation
Accurate alignment
Corrosion resistance
Wear resistance
Heavy & light end forces
Self-lubricating materials
Non-marring materials
Non-chipping materials
Special environments
Insulating properties
Withstands high temperatures
