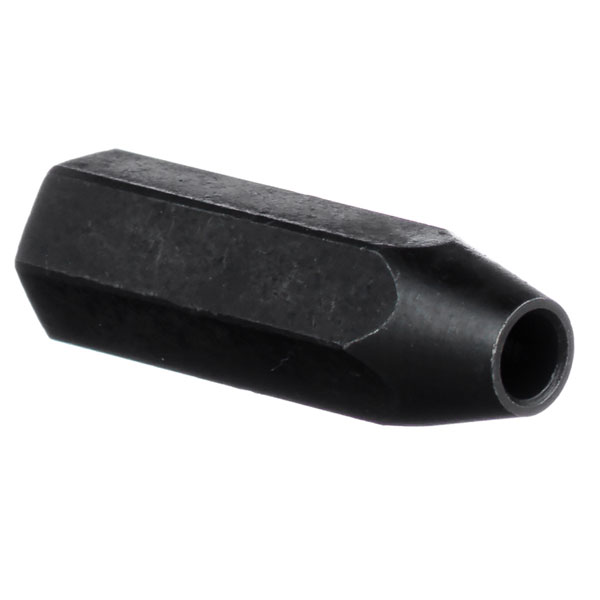

Knurled Press Fit Tool

Knurled Press-Fit Tool is an installation tool used to install knurled press-fit plungers quickly while reducing the risk of spring and body damage during assembly. Select the correct tool by matching your plunger part number to the corresponding KT-series tool in the ANSI table (PFBK and PFPK series). Product not available in metric.

Specify by:

  • Plunger part number (PFBK or PFPK series)
  • Installation tool part number (KT47, KT51, KT53, KT55, KT57, KT59 or KT60 per table)

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables
ANSI (Inch/American) Tables

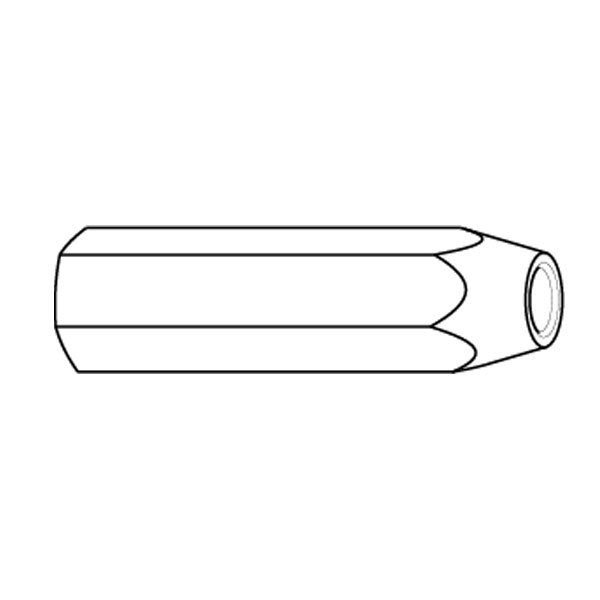

CAD Drawing

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering
Part No.Installation ToolROHSCAD
(D)(S)PFBK47KT47PFBK47
(D)(S)PFBK48KT47 PFBK48
(D)(S)PFBK51KT51PFBK51
(D)(S)PFBK52KT51 PFBK52
(D)(S)PFBK53KT53PFBK53
(D)(S)PFBK54KT53PFBK54
(D)(S)PFBK55KT55PFBK55
(D)(S)PFBK56KT55PFBK56
(D)(S)PFBK57KT57PFBK57
(D)(S)PFBK58KT57PFBK58
(D)(S)PFBK59KT59PFBK59
(D)(S)PFBK60KT59PFBK60
(D)(S)PFPK51KT51PFPK51
(D)(S)PFPK52KT51PFPK52
(D)(S)PFPK53KT53PFPK53
(D)(S)PFPK54KT53PFPK54
(D)(S)PFPK57KT55PFPK57
(D)(S)PFPK58KT55PFPK58
(D)(S)PFPK59KT60PFPK59
(D)(S)PFPK60KT60PFPK60
