View All High Value Series Stud Style Extended Length – Stainless Steel

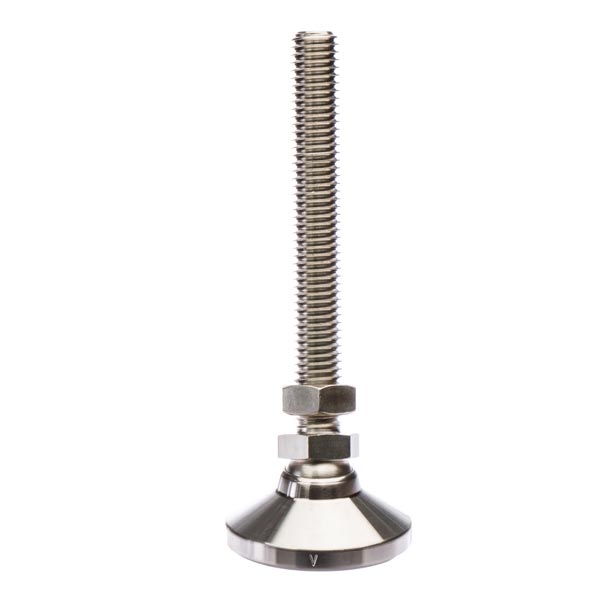

High Value Series Stud Style Extended Length Leveling Devices – Stainless Steel provide stud-mounted leveling with added clearance where longer stud length is required. The base swivels 15° off centerline to compensate for uneven surfaces. Features include a hardened ball, extended stud with integrally machined hex and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum workloads from 700– 22,000 lbs., depending on size. Product not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum work load requirement (700–22,000 lbs.)

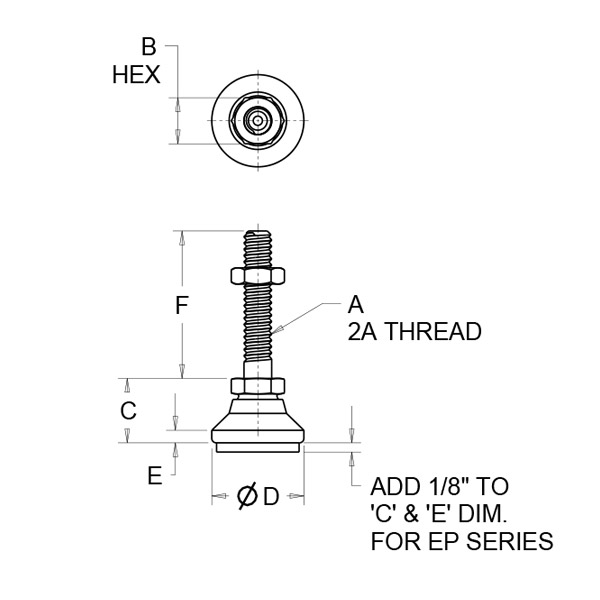

- Stud length and envelope dimensions (A–F per table)
- Base diameter and swivel requirement (15° off centerline)
- Wrenching access requirement (integrally machined hex)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max (Lbs.) Work Load | A | B | C | D | E | F | ROHS | Part No. |
| HVSSP299S | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 2 | HVSSP299S | |
| HVSSP301S | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 2 1/2 | HVSSP301S | |
| HVSSP305S | 3,750 | 3/8-16 | 5/8 | 7/8 | 1 1/4 | 3/16 | 4 | HVSSP305S | |
| HVSSP307S | 5,000 | 1/2-13 | 3/4 | 1 1/8 | 1 7/8 | 1/4 | 4 | HVSSP307S | |
| HVSSP309S | 6,000 | 5/8-11 | 7/8 | 1 1/4 | 2 1/2 | 5/16 | 4 | HVSSP309S | |
| HVSSP311S | 7,200 | 3/4-10 | 1 1/16 | 1 1/2 | 3 | 1/2 | 4 | HVSSP311S | |
| HVSSP313S | 22,000 | 1-8 | 1 3/8 | 1 7/8 | 4 | 13/32 | 8 | HVSSP313S |
