View All High Value Series Socket Style – Steel with Nickel Finish

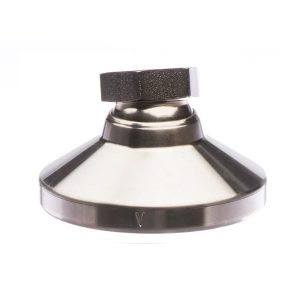

High Value Series Socket Style Leveling Devices – Steel with Nickel Finish provide secure leveling with a large diameter base support. Special features include a hardened ball, integrally machined hex and 15° swivel off centerline. Available in ANSI thread sizes 10–32 through 1–8 with maximum loads from 700–22,000 lbs., depending on size. Product not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum load requirement (700–22,000 lbs.)

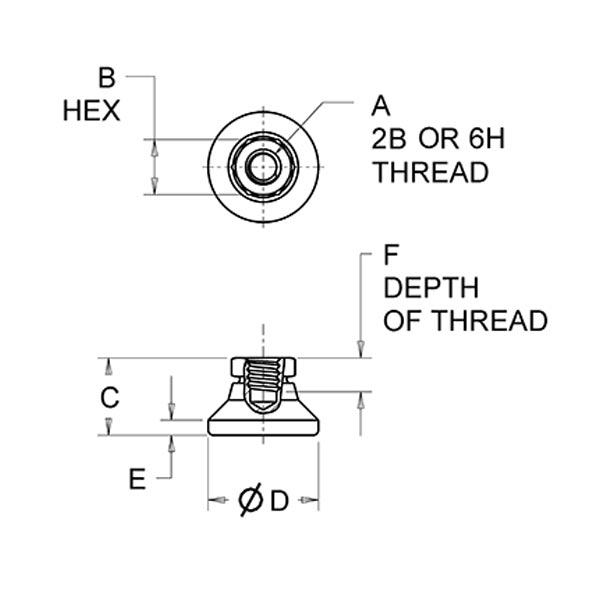

- Base and envelope dimensions (A–F per table)
- Finish requirement (nickel finish)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| HVP298B3 | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 15/64 | HVP298B3 | |
| HVP300B3 | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 5/16 | HVP300B3 | |
| HVP304B3 | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 3/8 | HVP304B3 | |
| HVP306B3 | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 7/16 | HVP306B3 | |
| HVP308B3 | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 7/16 | HVP308B3 | |
| HVP310B3 | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 5/8 | HVP310B3 | |
| HVP312B3 | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 13/16 | HVP312B3 |
