View All Original Series Stud Style Extended Length – Steel

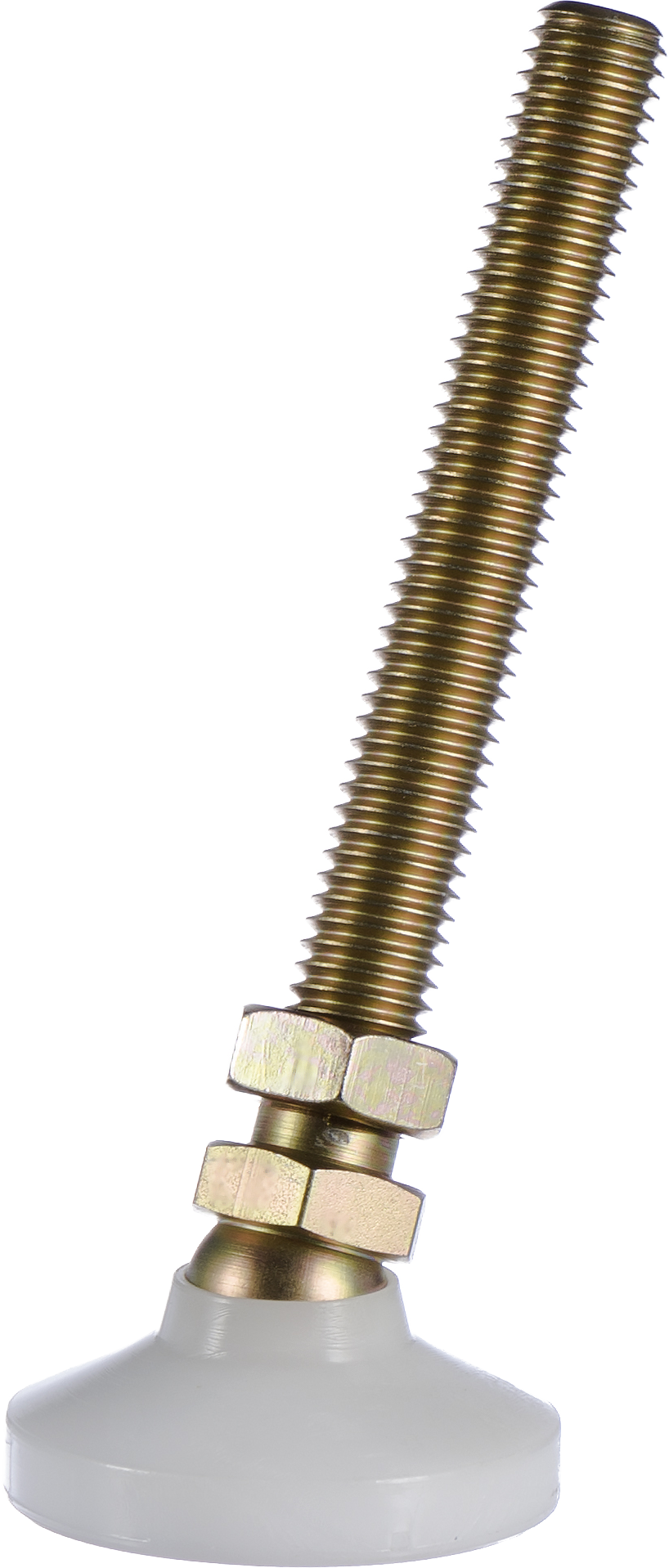

Original Series Stud Style Extended Length Leveling Devices – Steel provide an extended stud length for applications that require additional clearance. Each device includes a hardened ball, a stud with integrally machined hex, large diameter base support and 15° swivel off centerline to accommodate uneven surfaces. Zinc plate with gold chromate finish is standard.
Base options include a natural (white) Delrin® pad to protect floor and surface finishes and an elastomer pad option with 0.125 in neoprene bonded to the base for non-skid support. Available in ANSI threads 10–32 through 1–8 with maximum loads listed by part number. Product not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum load requirement
- Base option (standard, Delrin® base or elastomer pad)
- Stud length and envelope dimensions (A–F per table)
- Wrenching access requirement (integrally machined hex)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| P299S | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 2.0 | P299S | |
| P301S | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 2.5 | P301S | |
| P305S | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 4.0 | P305S | |
| P307S | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 4.0 | P307S | |
| P309S | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 4.0 | P309S | |
| P311S | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 4.0 | P311S | |
| P313S | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 8.0 | P313S |
