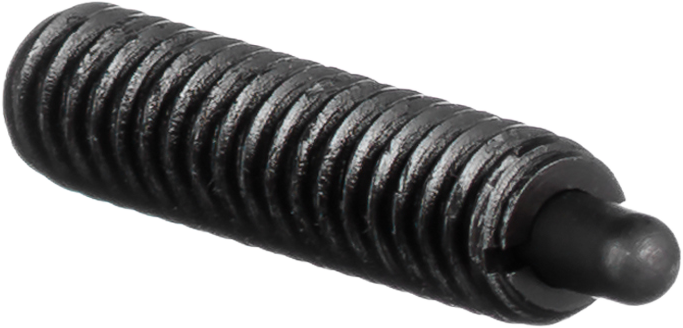

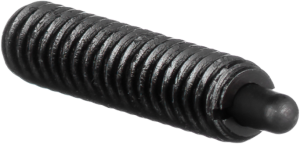

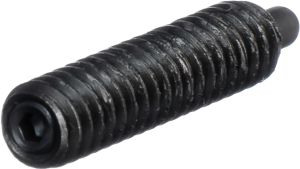

Standard Spring Plungers – Steel with Stainless Steel Nose

Standard Spring Plungers – Steel with Stainless Steel Nose are threaded spring loaded devices for positioning, indexing and detent functions where long travel and a large bearing surface are required. The steel body provides strength while the stainless steel nose provides a corrosion-resistant, wear-resistant contact surface. Select by thread size (ANSI 6-32 through 1-8 or metric), travel and end force (initial, mid and final) with optional thread lock.

Specify by:

Thread standard and size (ANSI or metric)
Required travel
End force profile (heavy or light)
Thread lock requirement

Click any row to see CAD and additional product information, or to add to quote.

Open All Tables

ANSI (Inch/American) Tables

Click any part number to see CAD, more information on part, and add to quote.

Contact Engineering

Part No.		End Force, (Lbs.)			A	B	C	D	ROHS	CAD	CAD With Thread Lock
	With Thread Lock	Initial	Mid.	Final	A	B	C	D	ROHS	CAD	CAD With Thread Lock
CS48	CS48P	1.5	3.0	4.5	6-32	0.53	0.063	0.044-0.045		CS48	CS48P
CS48A	CS48AP	1.0	1.3	1.6	6-32	0.38	0.063	0.044-0.045		CS48A	CS48AP
CS50	CS50P	2.7	5.0	7.3	8-32	0.63	0.094	0.069-0.070		CS50	CS50P
CS52	CS52P	2.9	7.0	11.1	10-32	0.75	0.125	0.091-0.092		CS52	CS52P
CS54	CS54N	3.0	8.0	13.0	1/4-20	1.00	0.188	0.117-0.118		CS54	CS54N
CS54A	CS54AN	3.0	8.0	13.0	1/4-28	1.00	0.188	0.117-0.118		CS54A	CS54AN
CS54B	CS54BN	2.0	5.5	9.0	1/4-20	0.75	0.125	0.117-0.118		CS54B	CS54BN
CS56	CS56N	3.0	9.0	15.0	5/16-18	1.00	0.188	0.133-0.135		CS56	CS56N
CS58	CS58N	5.5	10.0	14.5	3/8-16	1.13	0.188	0.186-0.187		CS58	CS58N
CS60	CS60N	6.6	12.0	17.4	1/2-13	1.25	0.250	0.247-0.248		CS60	CS60N
CS62	CS62N	10.5	18.0	25.5	5/8-11	1.50	0.313	0.308-0.310		CS62	CS62N
CS64	CS64N	6.7	22.0	37.3	3/4-10	1.75	0.313	0.373-0.374		CS64	CS64N
CS66	CS66N	16.0	42.0	68.0	1-8	1.41	0.500	0.496-0.498		CS66	CS66N
