View All High Value Series Stud Style with Elastomer Pad – Stainless Steel

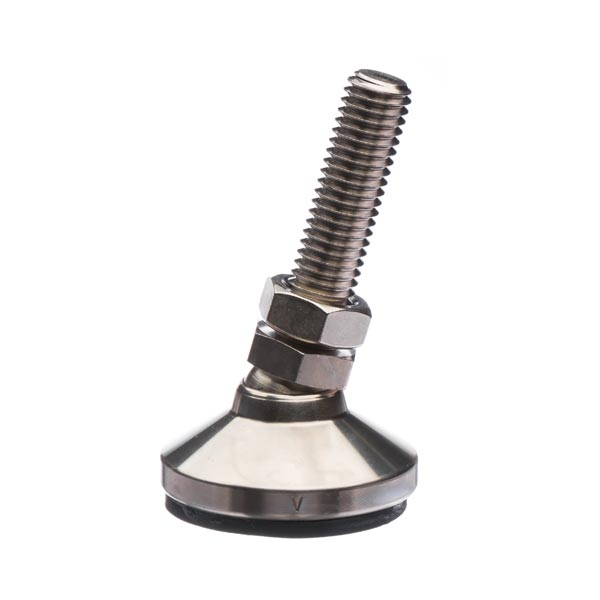

High Value Series Stud Style Leveling Devices with Elastomer Pad – Steel with Nickel Finish provide stud-mounted leveling with an integrally machined stud and a base that swivels 15° off centerline to adjust to uneven surfaces. A 0.125” neoprene elastomer pad is bonded to the bottom of the base for non-skid support and floor protection. Standard features include a hardened ball, integrally machined hex on the stud and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum loads from 525–16,400 lbs., depending on size. Not available in metric.
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Maximum load requirement (525–16,400 lbs.)
- Stud length and base dimensions (A–F per table)
- Wrenching access requirement (integrally machined hex)
- Floor protection requirement (elastomer pad)
- Finish requirement (nickel finish)
Click any row to see CAD and additional product information, or to add to quote.

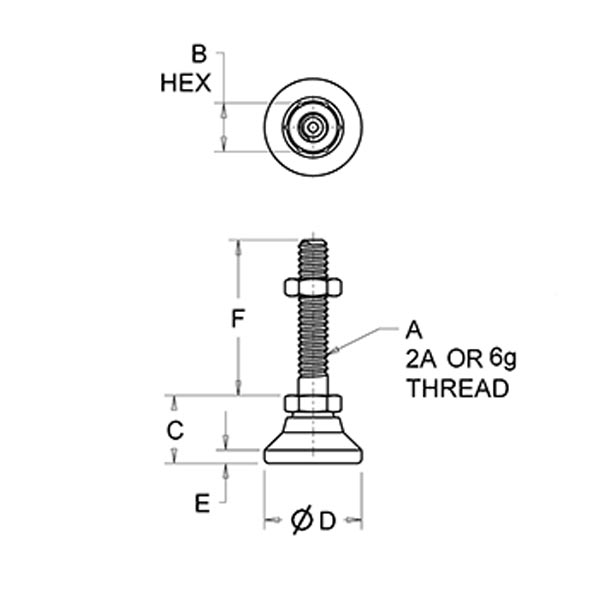

| Part No. | Max Load (Lbs.) | A | B | C* | D | E | F | ROHS | CAD |
| HVESSP298S | 525 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 1 | HVESSP298S | |
| HVESSP300S | 800 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 1-1/4 | HVESSP300S | |
| HVESSP304S | 2,800 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 2 | HVESSP304S | |
| HVESSP306S | 3,750 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 2 | HVESSP306S | |
| HVESSP308S | 4,500 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 2 | HVESSP308S | |
| HVESSP310S | 5,400 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 2 | HVESSP310S | |
| HVESSP312S | 16,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 4-1/4 | HVESSP312S |
