View All Original Series Stud Style Extended Length – Stainless Steel

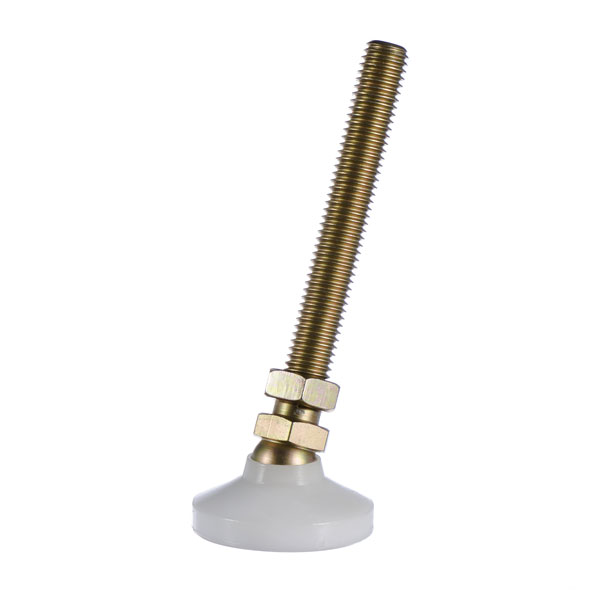

Original Series Stud Style Extended Length Leveling Devices – Stainless Steel provide additional clearance for stud-mounted leveling on uneven surfaces. Stainless steel construction provides maximum resistance to rust and corrosion. Options include a natural (white) Delrin® base to protect floors and surface finishes or an elastomer pad with a 0.125 in neoprene layer bonded to the base for non-skid support. Features include a 15° swivel off centerline, hardened ball, stud with integrally machined hex and large diameter base support. Available in ANSI threads 10–32 through 1–8 with maximum loads up to 22,000 lbs. depending on base option and size. Product not available in metric. (Standard base 700–22,000 lbs., elastomer pad 525–16,400 lbs., Delrin® base 150–2,400 lbs.)
Specify by:
- Thread size (ANSI 10–32 through 1–8)
- Base option (standard, elastomer pad or Delrin® base)
- Maximum load requirement (by base option and part number)

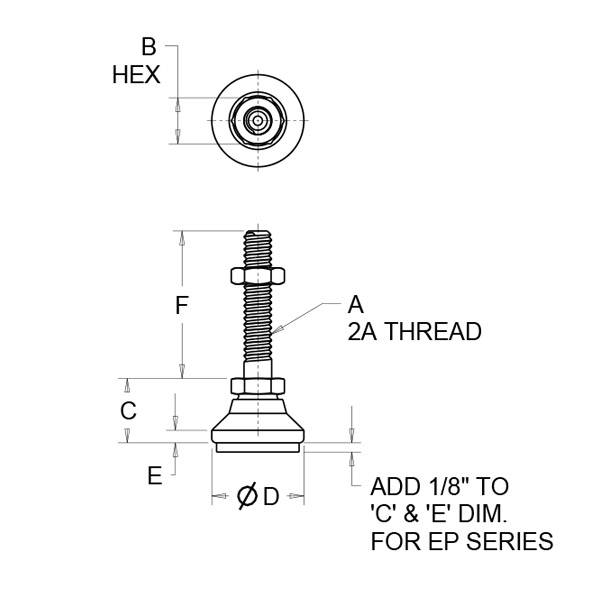

- Base diameter, stud length and envelope dimensions (A–F per table)
Click any row to see CAD and additional product information, or to add to quote.
| Part No. | Max Load (Lbs.) | A | B | C | D | E | F | ROHS | CAD |
| SSP299S | 700 | 10-32 | 3/8 | 17/32 | 3/4 | 7/64 | 2.0 | SSP299S | |
| SSP301S | 1,100 | 1/4-20 | 1/2 | 45/64 | 1 | 5/32 | 2.5 | SSP301S | |
| SSP305S | 3,750 | 3/8-16 | 5/8 | 7/8 | 1-1/4 | 3/16 | 4.0 | SSP305S | |
| SSP307S | 5,000 | 1/2-13 | 3/4 | 1-1/8 | 1-7/8 | 1/4 | 4.0 | SSP307S | |
| SSP309S | 6,000 | 5/8-11 | 7/8 | 1-1/4 | 2-1/2 | 5/16 | 4.0 | SSP309S | |
| SSP311S | 7,200 | 3/4-10 | 1-1/16 | 1-1/2 | 3 | 1/2 | 4.0 | SSP311S | |
| SSP313S | 22,000 | 1-8 | 1-3/8 | 1-7/8 | 4 | 13/32 | 8.0 | SSP313S |
