Long Travel Hex Nose Plungers

ANSI & Metric

Find a Distributor

Long travel hex nose plungers are ideal for high-speed, long-life applications. They are easily inserted, adjusted or removed with a standard wrench from plunger end.

Typical Uses

  • Positioning
  • Indexing
  • Ejecting
  • With Thread Lock
  • Latching
  • Detents
  • Contacts
  • Lifters
  • Insulators

Special Features

  • Hexagonal nose design
  • Case hardened plunger
  • Steel, black oxide finish
  • Standard thread lock
Download the PDF
Long Travel Hex Nose Plungers - ANSI & Metric
Long Travel Hex Nose Plungers - ANSI & Metric
ANSI (Inch/American) Tables
Metric Tables
CAD Library

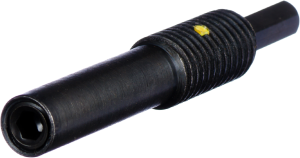

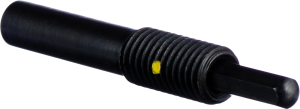

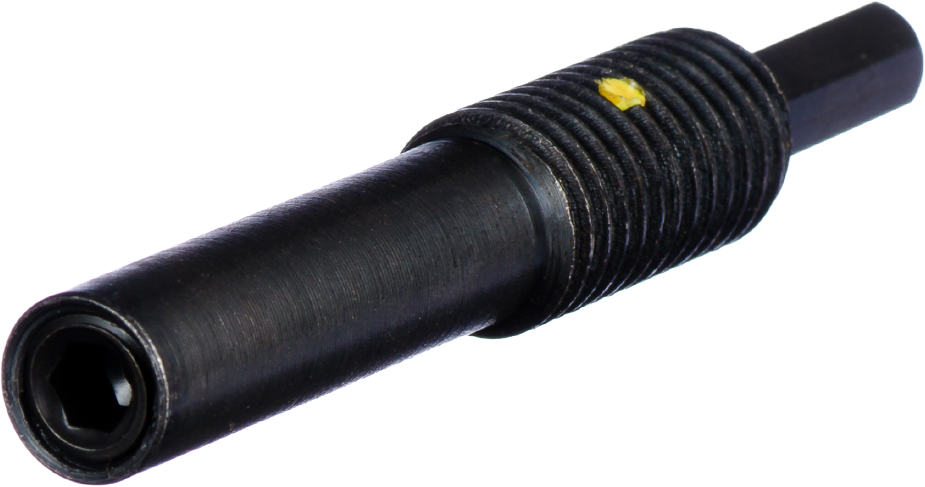

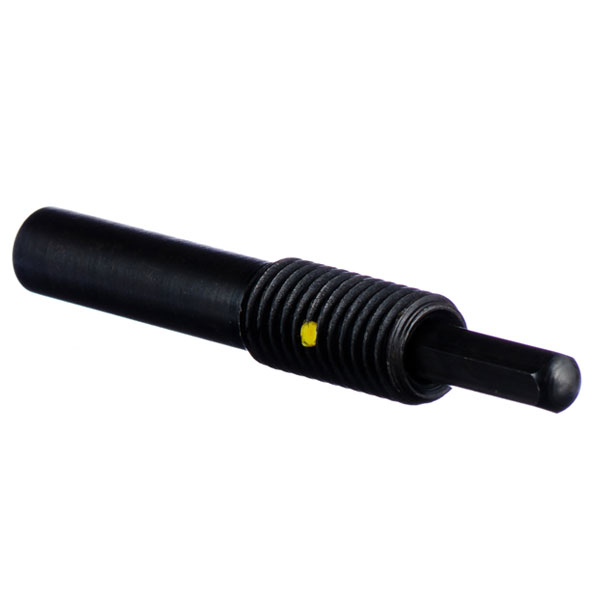

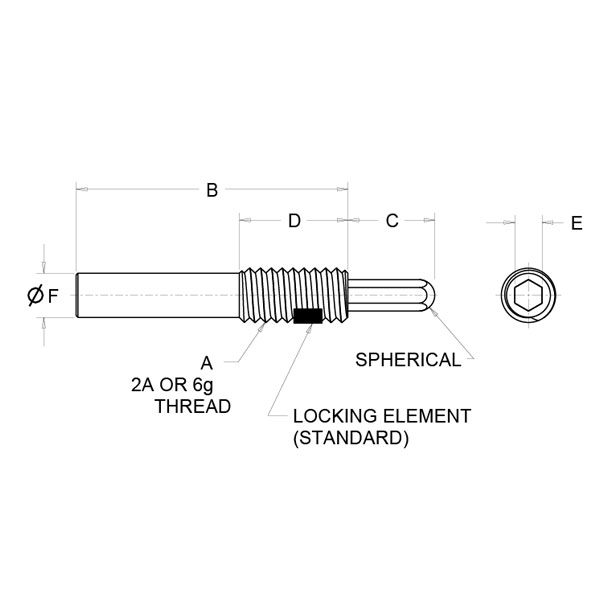

Long Travel Hex Nose Plungers

Part No.End Force, (Lbs.)ABCDEFROHSCAD
InitialFinal
HH62514.020.05/8-113.121.001.250.310.510HH6251
HH75014.035.03/4-103.751.001.500.380.612HH7501
HH100016.050 3/41-85.001.002.000.500.844HH1000
HH101516.068.01-85.001.502.000.500.844HH1015

Light End Force Long Travel Hex Nose Plungers

Part No.End Force, (Lbs.)ABCDEFROHSCAD
InitialFinal
HL10004.022.01-85.001.002.000.500.844HL1000
HL10154.031.01-85.001.502.000.500.844HL1015

Long Travel Hex Nose Plungers

Part No.End Force, NABCDEFROHSCAD
InitialFinal
HHM16017.889.0M16x2079.325.431.87.913.0HHM160
HHM20017.8155.7M20x2.595.325.438.19.715.8HHM200
HHM24071.2225.7M24x3.0127.025.450.812.721.4HHM240
HHM24571.2302.5M24x3.0127.038.150.812.721.4HHM245

Light End Force Long Travel Hex Nose Plungers

Part No.End Force, NABCDEFROHSCAD
InitialFinal
HLM24017.897.9M24x3.012725.450.812.721.4HLM240
HLM24517.8137.9M24x3.012738.150.812.721.4HLM245
